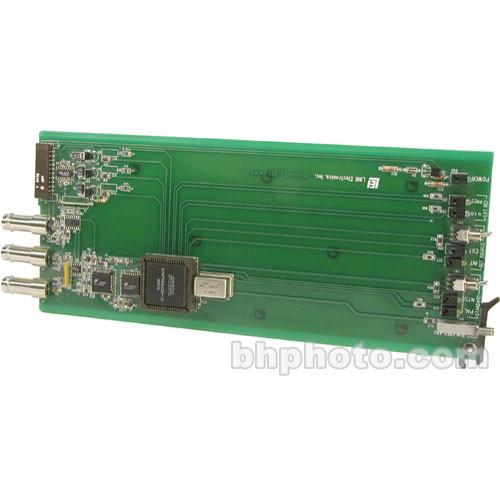

Product description The Link Electronics 812-OP/D is a Digital SDI Genlock Module; it accepts a digital blackburst and locks to it then outputs necessary genlock pulses for all other cells in the SPG-812 chassis. This unit was designed to work with other 812 modules for a complete studio reference system. - Genlock
- The digital genlock module takes in a stable digital black burst signal and genlocks to it; it strips the horizontal sync and creates a phase and frequency lock to a 27 MHz VCXO.
- LED Readout
- An LED readout allows the user to see when the unit has lock or automatically switches to a free run situation.
- Rack Card
- This device is a rack card that operates within the SPG-812 frame.
In the Box Link Electronics 812-OP/D Digital SDI Genlock - Rack Card, 812 Series, (BNC) 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 812-OP D Digital SDI Genlock - Rack Card, 812 Series, in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 812-OP/D Specs | Output | Digital Genlock x2, SMPTE 259M-C, on BNC connectors | | Television System | 525/60 or 625/50 | | Control | External Reference Input
Auto or Manual
Internal or External Sync
525 or 625 | | Power Source | Power derived from Rack Frame | | Dimensions (WxDxH) | 1 x 10 x 4.27"
2.5 x 25.4 x 10.8cm | | Weight | 0.5 lbs
227 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
