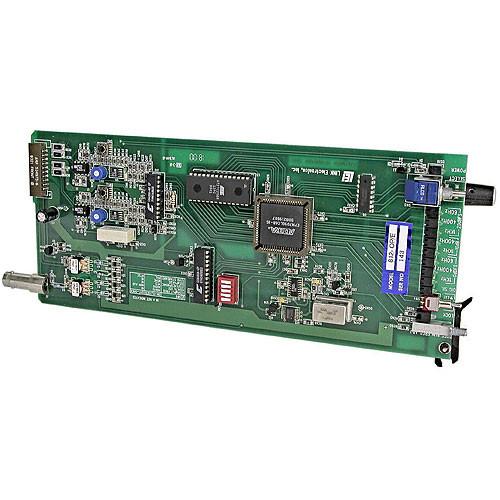

User Manual for Link Electronics 812-OP E Digital and Analog Audio Generator - Rack Card, 812 Series, BNC, Terminal Block Click to enlarge the picture
Contents of the user manual for the Link Electronics 812-OP E Digital and
- Product category: Video & Audio Signal Generators Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Video & Audio Signal Generators
|
User manual for the Link Electronics 812-OP E Digital and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 812-OP/E is a digital and analog audio signal generator module. This unit is designed to perform two basic functions. The first basic function of this module is to produce a single AES/EBU digital audio signal for use as a digital audio reference or digital tone source. Second, it is to produce a balanced stereo analog audio signal of up to +28dBu for use as a test tone. - Selection
- The user may select the amplitude and frequency of the audio tone from a fixed set of 8 combinations. Within this set of eight there are three frequencies (1KHz, 400Hz, 60Hz) and three levels (0dBFS, -10dBFS, -20dBFS). With this, the module has the ability to produce "digital silence" while producing one of the eight combinational tones on the output.
- LED Readout
- LEDs are used to indicate tone frequency and level, digital silence, lock status, and power indication.
- Rack Card
- This device is a rack card that operates within the SPG-812 frame.
In the Box Link Electronics 812-OP/E Digital and Analog Audio Generator - Rack Card, 812 Series, BNC, Terminal Block 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 812-OP E Digital and Analog Audio Generator - Rack Card, 812 Series, BNC, Terminal Block in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 812-OP/E Specs | Output | Digital Audio: AES-3ID, on BNC connectors
Digital Audio: AES3-1992, on Terminal Blocks
Balance Analog Audio: on Terminal Blocks | | Control | amplitude and frequency of the audio tone from a fixed set of 8 combinations
Within this set of eight there are three frequencies 1KHz, 400Hz, 60Hz
three levels 0dBFS, -10dBFS, -20dBFS
digital silence while producing one of the eight combinational tones on the output | | Power Source | Power derived from Rack Frame | | Dimensions (WxDxH) | 1 x 10 x 4.27"
2.5 x 25.4 x 10.8cm | | Weight | 0.5 lbs
227 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
