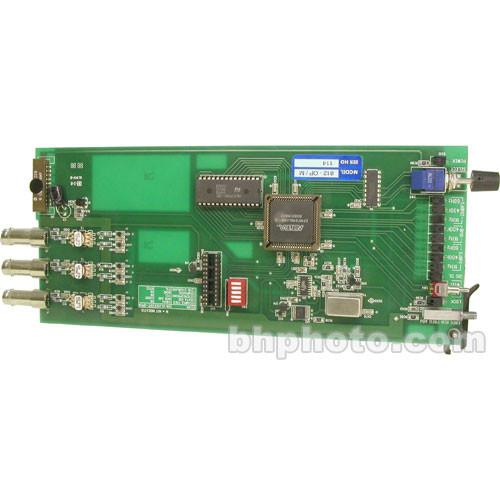

User Manual for Link Electronics 812-OP L Analog Pulse Generator - Composite Sync, Burst Flag, Color Subcarrier, BNC, Rack Card Click to enlarge the picture
Contents of the user manual for the Link Electronics 812-OP L Analog Pulse
- Product category: Video & Audio Signal Generators Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Video & Audio Signal Generators
|
User manual for the Link Electronics 812-OP L Analog Pulse contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 812-OP/L is an analog pulse generator designed to provide Composite Sync, Burst Flag, and color subcarrier for studio and/or system applications that require 4 Vpp drive pulses and 2 Vpp subcarrier. It receives Genlock from an 812-OP/C or 812-OP/D mounted in the same SPG-812 chassis, then this module places the timing pulses down the motherboard bus as reference. - Timing Pulses
- The 812-OP/K pulse generator uses timing pulses to lock the PLL on the module and reset the vertical and horizontal counters within the complex programmable logic devices. This action times up all counters by an external reference.
- Subcarrier Output
- The subcarrier output is filtered for low harmonic distortion and is driven by a discrete amplifier.
- Rack Card
- This device is a rack card that operates within the SPG-812 frame.
In the Box Link Electronics 812-OP/L Analog Pulse Generator - Composite Sync, Burst Flag, Color Subcarrier, BNC, Rack Card 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 812-OP L Analog Pulse Generator - Composite Sync, Burst Flag, Color Subcarrier, BNC, Rack Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 812-OP/L Specs | Output | Composite Burst Flag, 4 Vpp @ 75 ohms, on a BNC connector
Composite Sync, 4 Vpp @ 75 ohms, on a BNC connector
Color Subcarrier, 2 Vpp @ 75 ohms, on a BNC connector | | Television System | NTSC @ 3.58 MHz | | Control | External Reference Input
Horizontal Phasing
Vertical Phasing
Sub-Carrier Phasing | | Power Source | Power derived from Rack Frame | | Dimensions (WxDxH) | 1 x 10 x 4.27"
2.5 x 25.4 x 10.8cm | | Weight | 0.5 lbs
227 grams | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
