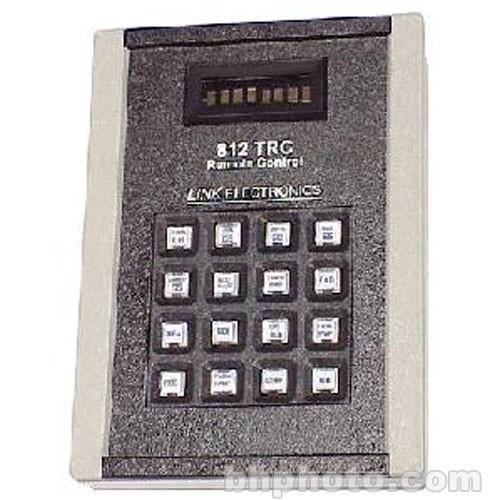

Product description The Link Electronics 812TRC is a remote designed to control the SPG-812 digital and analog test set modules. The 812TRC's features a 4x4 keypad allowing selection of one of sixteen (16) different video test patterns. The control interface uses standard RS-485 drivers and receivers to provide reliable communication from a distance of up to 4000 feet. - Alpha-Numeric Readout
- An 8-digit alpha-numeric readout gives the user feedback on control and operation.
In the Box Link Electronics 812TRC Remote Control - for OP/F and/or OP/G Test Modules in the SPG-812 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 812TRC Remote Control - for OP F and or OP G Test Modules in the SPG-812 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 812TRC Specs | Interface | RS-485, on a terminal block | | Control | A 4x4 keypad offers the user 16 touch controls for pattern and signal output selection. | | Dimensions (WxDxH) | 5 x 7 x 3.5"
12.7 x 17.8 x 8.9cm | | Weight | 17.5 oz
496 g | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 11.0" |
