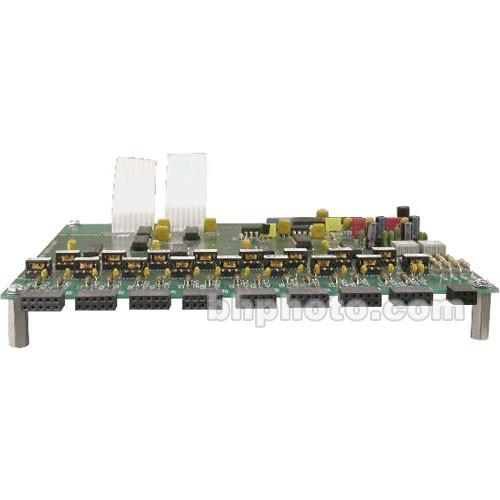

Product description The 816-OP/D SDI AES Audio Switch Matrix for AVS-816 from Link Electronics is an analog video matrix card designed for use in the AVS-816 Audio-Video routing switcher. The AVS has seven cards available to customize its configuration.
This unit is an AES/EBU plug-in board. By using this card, the AVS-816 takes on the functionality of an AES/EBU audio-only switcher. Choose this AES audio matrix and a video matrix to achieve your desired audio-video switcher format.
Software supplied with the AVS-816 routing switcher allows you to control the functionality of this card from your computer. The unit can additionally be controlled with the AVS-816's remote control. - AES/EBU Audio Matrix for AVS-816 Audio-Video Routing Switcher
- This unit is an AES/EBU audio matrix card designed for use in the AVS-816 Audio-Video routing switcher.
- Control
- Software supplied with the AVS-816 routing switcher allows you to control the functionality of this card, or use the AVS-816's remote control.
In the Box Link Electronics 816-OP/D SDI AES Audio Switch Matrix for AVS-816 Matrix Card Ten-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 816-OP D SDI AES Audio Switch Matrix for AVS-816 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 816-OP/D Specs | Inputs | 16x AES audio | | Outputs | 1x AES audio, digital BNC | | Switch Type | Matrix | | Interface | AES3-1992 | | Connector | BNC or 3-pin plug-in terminal | | Format | Bi-Phase Mark Encoded | | Impedance | Input: 110Ω ± 1%
Output: 110Ω ± 1% | | Coupling | Transformer | | Level | 4.2Vpp Typical | | Frequency Response | 30 KHz to 50 KHz | | Control | RS232, remote control | | Power | Input: 120/240 VAC ± 10% 50/60 Hz
Power: 8 VAR | | Dimensions (HxWxD) | 1-3/8 x 6-1/4 x 7" | | Weight | 8.5 oz | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
