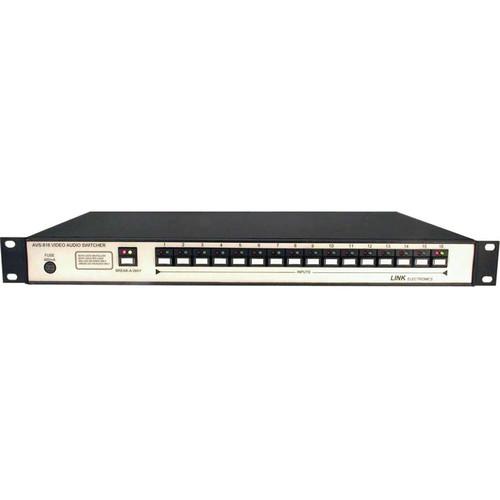

User Manual for Link Electronics AVS-816 HDD HD SD-SDI Switcher with AES 75-Ohm Audio Follow Click to enlarge the picture
Contents of the user manual for the Link Electronics AVS-816 HDD HD SD-SDI
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics AVS-816 HDD HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The AVS-816/HDD HD/SD-SDI Switcher with AES 75-Ohm Audio Follow from Link Electronics is a wide-bandwidth, video-audio vertical interval switcher designed for professional video applications. It supports both HD/SD-SDI video and AES audio. This unit features 16x16 switching functionality. Digital switching modules for both video and audio may be mixed in any combination to customize system functionality. Inputs are non-looping and offer outstanding return loss performance. For HD/SD digital applications, an optional analog monitoring output is available for analog audio. Audio and video break-away are selected by a single switch on the front panel. Dual LEDs on the source selection and follow switch indicate follow or breakaway. The digital audio inputs use standard BNC connectors. The HD video I/O features 1.5GB circuitry to eliminate the possibility of ground loop interference. Switching is accomplished during the vertical interval by using the vertical sync derived from the video at the output stage. Similarly, digital audio switching takes place during the audio sample preamble. Up to 32 switchers can be controlled by the computer software. This unit can be controlled with a serial data feed of RS-232 or RS-422/485, selectable by a simple internal DIP switch. A remote control panel is also separately available and uses the common RJ-11 modular connector along with the RS-485 interface standard. For automated system applications, an optional GPI interface is also available. The serial communication protocol is compatible with existing Link Electronics video and audio switchers and remote control panels. For integration into existing systems, the unit can be preset to respond to those instruction sets as well. - RS-232 & RS-422 connectivity
- 16x16 switching functionality
- Controls up to 32 switchers
- Individual I/O audio connection
- Windows-based control software
UPC: 705641989973 In the Box Link Electronics AVS-816/HDD HD/SD-SDI Switcher with AES 75-Ohm Audio Follow Ten-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics AVS-816 HDD HD SD-SDI Switcher with AES 75-Ohm Audio Follow in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics AVS-816/HDD Specs | Input | HD/SD-SDI VIDEO INPUTS:
Standard: 270Mbps, 1.4835/1.485Gbps
Number: 16
Impedance: 75 Ohms, 1%
Configuration: single-ended, AC-coupled
Return Loss: >18dB
Reference In: analog black AES AUDIO INPUTS:
Number: 16
Interface: AES3-1992
Connector: BNC, optional 3-pin terminal plug-in
Format: bi-phase mark encoded
Impedance: 75 Ohms or 110 Ohms +/-1%
Coupling: transformer
Level: 800Mv or 4.2Vpp typical
Sample Frequency Range: 30 to 50KHz | | Output | HD/SD-SDI VIDEO OUTPUTS:
Number: 1
Level: 800mV +/-10%
Impedance: 75S, +/-1%
Return Loss: >18dB
Rise/Fall Time: 1ns +/-250ps
Overshoot: <10% of amplitude
Equalization: automatic up to >30dB
Propagation Delay: 10ns
Input Cable Length, Maximum: 82' (250m) AES AUDIO OUTPUTS:
Number: 1 digital on BNC, 1 analog for monitoring on 3-pin connector
Interface: AES3-1992
Connectors: BNC or 3-pin terminal plug-in
Format: bi-phase mark encoded
Impedance: 75 Ohms or 110 Ohms +/-1%
Coupling: transformer
Level: 800Mv or 4.2Vpp typical | | Power | Input: 120/240VAC +/-10%, 50/60Hz
Power: 8VAR | | Dimensions | 1.75 x 19 x 8.7" (44.45 x 482.6 x 220.98mm) | | Weight | 6.8 lbs (3.08kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
