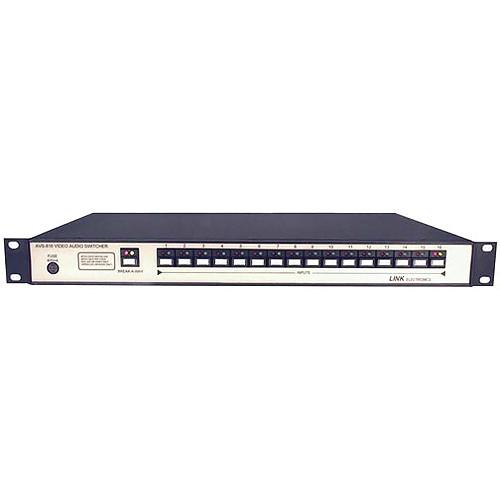

User Manual for Link Electronics AVS-816 SDA SDI Switcher with Audio Follow Click to enlarge the picture
Contents of the user manual for the Link Electronics AVS-816 SDA SDI Switcher
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics AVS-816 SDA SDI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics AVS-816/SDA SDI Switcher with Audio Follow (16 x 1) features 16 SDI video, 16 AES stereo audio inputs, 1 SDI video output, 1 AES audio output, 1 analog video output, and 1 analog audio output. The unit offers digital and analog switching modules for both video and audio signals so that you can mix them in any combination.
With vertical interval switching, the device switches only at a particular reference point (vertical interval) and avoids mixing of multiple input signals. The switcher has non-looping inputs and high-return loss (>18dB). Digital audio switching takes place during the audio sample preamble and features a full-transformer isolation to eliminate the possibility of ground loop interference. Featuring a compact (19 x 1.75 x 8.7" / 48.3 x 4.4 x 22.1 cm) modular design, the AVS-816/SDA SDI Switcher with Audio Follow (16 x 1) supports video and audio in both the analog domain.
You can select the audio and video-breakaway feature via a single switch on the front panel. The dual LEDs on the source selection and follow switch indicate the switching mode (audio follow or video breakway).
The AVS-816/SDA SDI Switcher with Audio Follow can be controlled by a serial data feed through RS-232 or RS-422/485 interface that can be selected by an internal DIP switch. You can also control the switcher via a remote control (not included) . Up to 32 switchers can be cascaded and controlled by the Windows based control software. - 16 SDI video and 16 AES audio inputs
- 1 SDI video output, 1 AES audio output, 1 analog video output, and 1 analog audio output
- Offers digital and analog switching modules for both video and audio signals so that you can mix them in any combination
- Vertical interval switching - switches only at a particular reference point (vertical interval) and avoids mixing of signals
- Non-looping inputs and high-return loss (>18dB)
- Digital audio switching takes place during the audio sample preamble and features a full-transformer isolation to eliminate the possibility of ground loop interference
- Compact (19 x 1.75 x 8.7" / 48.3 x 4.4 x 22.1 cm ) modular design - supports video and audio signals in both the analog domain
- You can select the audio and video-breakaway feature via a single switch on the front panel
- Dual LEDs on the source selection and follow switch indicate the switching mode (audio follow or video breakway)
- Can be controlled by a serial data feed through RS-232 or RS-422/485 interface that can be selected by an internal DIP switch
- You can also control the switcher via a remote control (not included) that utilizes the common RJ-11 modular connector along with the RS-485 interface standard
- Up to 32 switchers can be cascaded and controlled by a Windows based control software
In the Box Link Electronics AVS-816/SDA SDI Switcher with Audio Follow (16 x 1) 1 - Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics AVS-816 SDA SDI Switcher with Audio Follow in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics AVS-816/SDA Specs | SD SDI Video Inputs | Standard: 270Mb/s
Number: Sixteen (16)
Impedance: 75Ω, 1%
Configuration: S/E, AC coupled
Return Loss: >18dB | | Outputs, SDI | Number: One (1), SD SDI
Level: 800mV ±10%
Impedance: 75Ω, ±1%
Return Loss: >18dB
Rise/Fall Time: 1ns ± 250ps
Overshoot: <10% of amplitude
Propagation Delay: 10ns
Input Cable Length: Max 250m
Interface: AES-3id 75 ohms
Connector: BNC
Impedance: 75Ω ±1%
Level: 800mV | | Analog Audio Input | Type: Stereo balanced
Number: Sixteen (16)
Connector: 3-pin terminal plug-in
Format: Bi-phase mark encoded
Sample Freq. Range: 30 KHz to 50 KHz | | Outputs | Number: Two (2)
Interface: AES3-1992
Connectors: 3-pin plug-in terminal block
Format: Bi-phase mark encoded
Impedance: 20KΩ, bridging
Coupling: Transformer
Level: 4.2 Vp-p Typical | | Dimensions | 19 x 1.75 x 8.7" (48.3 x 4.4 x 22.1 cm) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
