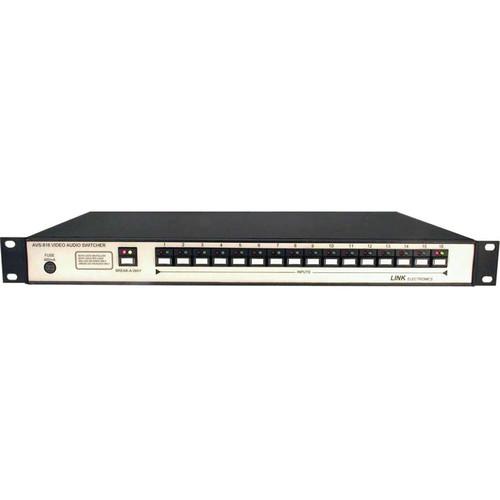

Product description The AVS-816/VA Analog Video Switcher from Link Electronics is an analog-video only switcher with (16) inputs and (2) outputs. It features a wide bandwidth vertical interval designed for use in professional video applications. Its modular design allows for a separate audio module to be added for enhanced functionality. The unit can be controlled via a serial data feed of RS-232 or RS-422/485, as well as with Windows-based control software or a separately available remote control panel. It is designed for placement in 1U of a standard 19" equipment rack. - This unit offers 16x2 video switching
- The device can be controlled via RS-232 or RS-422/485
- It features wide bandwidth vertical interval switching
- This unit occupies 1U in a standard 19" equipment rack
- It can be managed with Windows-based software
UPC: 705641989980 In the Box Link Electronics AVS-816/VA Analog Video Switcher Ten-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics AVS-816 VA Analog Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics AVS-816/VA Specs | Inputs | Number: Sixteen (16)
Impedance: 75 Ohms +/-1%
Configuration: Single-ended
Level: 1vpp +/-3dB | | Outputs | Number: Two (2)
Level: Unity Gain +/-1%
Impedance: 75 Ohms +/-1%
Frequency Response:
+/-0.5dB to 15MHz
3dB to 3OMHz
Differential Phase: <0.1E
Differential Gain: <0.1%
Tilt: <0.5%
S/N Ratio: >70dB
Propagation Delay: 161lnS +/-0.2nS
Crosstalk: +/->6OdB, Worst Case | | Reference | Standard: Analog Blackburst
Number: One (1) | | Power | Input: 120/240VAC +/-10%, 50/60Hz
Power: 8VAR | | Dimensions (HxWxD) | 1.75 x 19 x 8.7" (4.45 x 48.26 x 22.1cm) | | Weight | 6.8 lbs (3.08kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
