User Manual for Link Electronics AVS-816 VA Analog Video Switcher Click to enlarge the picture
Contents of the user manual for the Link Electronics AVS-816 VA Analog Video
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics AVS-816 VA Analog Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

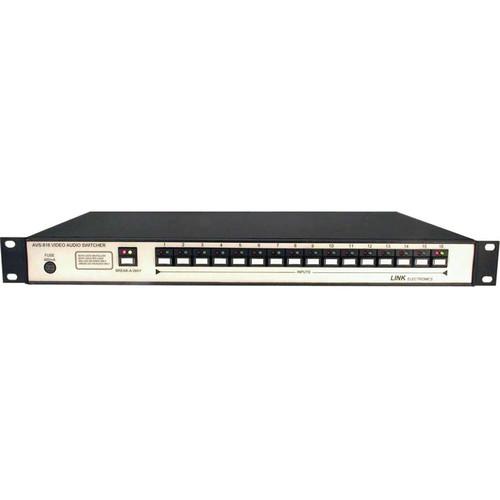

Product description The AVS-816/VHD HD/SD-SDI Video Switcher from Link Electronics is an HD/-SD-SDI video-only switcher with (16) inputs and (1) outputs. It features a wide bandwidth vertical interval designed for use in professional video applications. Its modular design allows for a separate audio module to be added for enhanced functionality. Supported reference types include Analog Black or Tri Level. The unit can be controlled via a serial data feed of RS-232 or RS-422/485, as well as with Windows-based software or a separately available remote control panel. - This unit offers 16x1 HD/SD-SDI switching
- The device can be controlled via RS-232 or RS-422/485
- Analog Black and Tri Level reference are supported
- It features wide bandwidth vertical interval switching
- This unit occupies 1U in a standard 19" equipment rack
- It can be managed with Windows-based software
In the Box Link Electronics AVS-816/VA Analog Video Switcher Ten-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics AVS-816 VA Analog Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics AVS-816/VA Specs | Inputs | Standard: 270Mbps, 1.4835/1.485Gbps
Number: Sixteen (16)
Impedance: 75 Ohms, 1%
Configuration: Single-Ended, AC Coupled
Return Loss: >18dB | | Outputs | Number: One, Digital
Level: 800mV +/-10%
Impedance: 75 Ohms, +/-1%
Return Loss: >18dB
Rise/Fall Time: 1ns +/-250ps
Overshoot: <10% of Amplitude
Equalization: Automatic up to >30dB
Propagation Delay: 10ns
Input Cable Length: 750' (250m) maximum | | Reference | Standard: Analog Blackburst or Tri Level
Number: One (1) | | Power | Input: 120/240VAC +/-10%, 50/60Hz
Power: 8VAR | | Dimensions (HxWxD) | 1.75 x 19 x 8.7" (4.45 x 48.26 x 22.1cm) | | Weight | 6.8 lbs (3.08kg) | | | | Package Weight | 8.85 lb | | Box Dimensions (LxWxH) | 20.9 x 19.6 x 7.7" |
