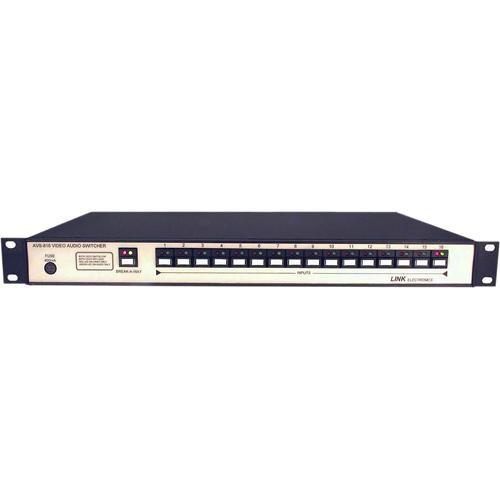

User Manual for Link Electronics AVS-816 VSDI 16x1 SDI Video Switcher Click to enlarge the picture
Contents of the user manual for the Link Electronics AVS-816 VSDI 16x1 SDI
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics AVS-816 VSDI 16x1 SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The AVS-816/VSDI 16x1 SDI Video Switcher from Link Electronics includes no audio functionality, although audio follows video functionality may be added at a later date with the desired module. This device is a video vertical-vertical interval switcher designed for professional applications. It features a modular design that allows it to be configured for analog of digital performance. SDI and analog switching modules for both video and audio may be mixed in any combination to meet your exact needs. When used with the separately available audio module, breakaway can be selected with a single switch on the front panel. Dual LEDs on the source-selection and follow switch indicate status. The unit features (3) internal jumpers for configuration of its parameters. It can be controlled via RS-232 or RS-422/485. Interface standards are selectable using an internal DIP switch. A remote control panel is also available separately. The system may also be managed with an optional GPI interface. - This solution features (16) SDI inputs and (1) SDI output
- It can be controlled via RS-232 or RS-422/485 connectivity
- An analog output is included for monitoring
- GPI can be added separately
- It is housed in a 1U rackmount chassis
- This device is capable of controlling up to (32) switches
- Switching occurs at the vertical interval
- This solution includes Windows-based control software
In the Box Link Electronics AVS-816/VSDI 16x1 SDI Video Switcher Ten-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics AVS-816 VSDI 16x1 SDI Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics AVS-816/VSDI Specs | Input | 16x SDI
Level: 800mV +/-10%
Standard: component 270MBps
Impedance: 75 Ohms, +/-1%
Return Loss: >18dB
Rise/Fall Time: 1ns +/-250ps
Overshoot: <10% of amplitude
Equalization: automatic up to >30dB
Propagation Delay: 10ns
Input Cable Length (maximum): 250m | | Output | 1x SDI, 1x Analog for monitoring
Standard: component 270MB/s
Impedance: 75 Ohms, 1%
Configuration: single-ended, AC coupled
Return Loss: >18dB | | Power | Input: 120/240 VAC +/-10%, 50/60 Hz
Power: 8VAR | | Dimensions | 1.75 x 19 x 8.7" | | Weight | 6.8 lbs | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
