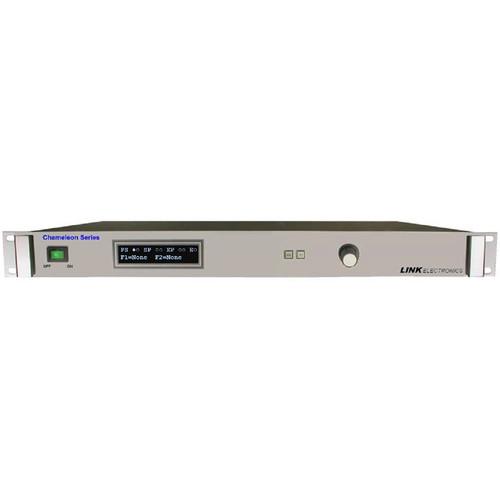

User Manual for Link Electronics Closed Caption Analyzer with SmartCap Click to enlarge the picture
Contents of the user manual for the Link Electronics Closed Caption Analyzer with
- Product category: Test Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Test Equipment
|
User manual for the Link Electronics Closed Caption Analyzer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The SCA-436 is a caption analyzer that will display the line location of the CDP. It will also indicate any CDP error(s) that may be present, for example service sequential errors or CDP rate errors. It will indicate what CEA-608 (CC1-CC4) and what CEA-708 (S1-S6) captions are present. It will indicate what services are in the CDP descriptor if the descriptor is present. It can also indicate the SDI timing compared to an analog reference.
The SCA-436 has its OSD on one of the 3 outputs, this allows the other two outputs to be used downstream. This unit can be put into a system stream for full time monitoring of the caption and timing information. The output has the information overlaid onto the video, allowing you to see everything on one screen. Menu options allow you to turn off or on the timing and CDP displays separately. A GPI remote can be used to turn both displays off. The SCA-436 reference input format can be NTSC, PAL, 720P, 1080I, and 1080P. The SDI video input format can be NTSC, PAL, (SMPTE 259 M) 720P, 1080I, and 1080P (SMPTE 292 M), both inputs are auto detected. Front panel buttons indicate if the inputs are locked (green) or not locked (red). The reference and SDI input formats do not have to match, but if they are not gen-locked to each other the horizontal and vertical timing displays will not display the timing. A reference input is not required for the CDP display. The SCA-436 design, performance and reliability are reflected in the New-Generation of Link Electronics products. Simple user interfaces with an enter button, escape button, a rotary knob, and a 20X2 Vacuum Fluorescent Display are used for menu navigation. This is the second product of Link Electronics Chameleon Series.
- Key Features
-
- CDP Line Location Displayed
- CEA-608/708 Presence Displayed
- 3GB/HD/SD-SDI Input
- CDP Rate Displayed
- GPI Control of OSD
- CDP Errors Displayed
- Timing Displayed
- VANC Packet Number Displayed
- Field Upgrade Serial or Ethernet
Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics Closed Caption Analyzer with SmartCap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics SCA-436 Specs | | | Supported Video Standards | PAL, NTSC | | | | Terminals | (1) x 3G HD-SDI input - BNC
(3) x 3G HD-SDI output - BNC |
