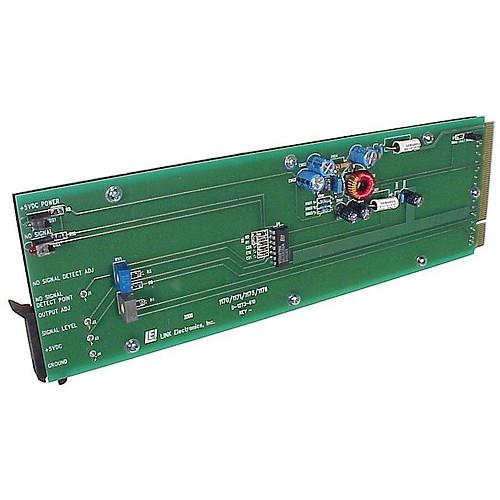

Product description The DigiFlex 1170A/1070 1x8 SD SDI or ASI Distribution Amplifier from Link Electronics restores the incoming signal to its proper amplitude. The signal is reshaped with automatic equalization, re-sliced and DC restored. The amplifier comes with a removable rear cell which provides eight outputs. A module fault LED on the front edge of the module indicates that the input signal level is below a pre-set threshold. This threshold may be adjusted to suit the users needs. A second module fault LED is located on the rear cell and is therefore visible from the back of the equipment rack. A rear I/O module must be selected for the specific front signal module. The signal module and rear I/O module, with the flexibility of the frame, place virtually no limits on the versatility of the DigiFlex 1000 system. The 1170A accepts composite 143 Mb/s, component 270 Mb/s, and 16:9 aspect ratio 360 Mb/s standards. The module is transparent to the incoming signal data rate and has a fixed output level of 800 mV. - Re-shapes and equalizes incoming signal
- Features a fault indicator
In the Box Link Electronics DigiFlex 1170A/1070 1x8 SD SDI or ASI Distribution Amplifier Rear Cell Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics DigiFlex 1170A 1070 1x8 SD SDI or ASI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1170A/1070 Specs | | | Signal Type | Video | | Standard | 143 Mb/s, SMPTE 259M-C; 177 Mb/s; 270 Mb/s; 360 Mb/s | | Impedance | 75 ohms | | Return Loss | >20 dB | | Signal Level | 800 mV ±10% | | CMR | 30 Vpp, up to 60 Hz | | Connectors | BNC | | Equalization | Automatic up to 30 dB | | | | Number of Outputs | 8 | | Standards | 143 Mb/s, SMPTE 259M-C; 177 Mb/s; 270 Mb/s; 360 Mb/s | | Connectors | BNC | | Impedance | 75 ohms | | Return Loss | >20 dB | | Signal Level | 800 mV ±10% | | DC Offset | 0 V ±0.5 V | | Rise & Fall | 1 nsec ±250 psec | | Overshoot | <10% of amplitude | | Delay | Through: 4 nsec | | Input Cable Length | Maximum 500' (152 m) | | | | Front Controls & Indicators | Power: Green LED
No Signal: Red LED
No Signal Detect Adj: Potentiometer
Detect Point: Test Point
+5 VDC: Test Point
Ground: Test Point | | Ambient Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90% non-condensing | | Power | 320 mW | | Dimensions | 3 x 1 x 10" (8 x 3 x 25 cm) | | Weight | 7.25 oz (205.53 g) |
