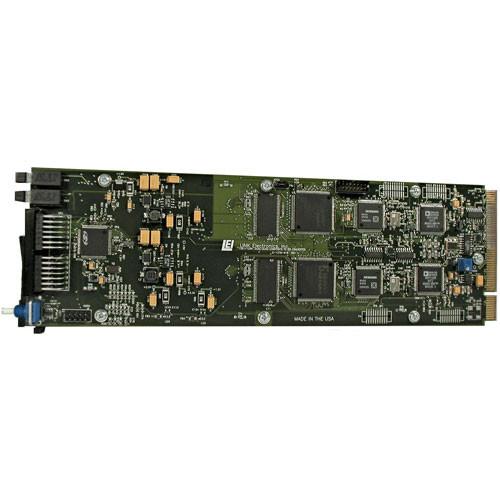

Product description The DigiFlex 1261/1061 Analog to SDI Converter with Frame Sync from Link Electronics is a set of paired modules that convert (2) component video inputs to (2) isolated SDI outputs in NTSC or PAL format. This model also includes an integral frame synchronizer.

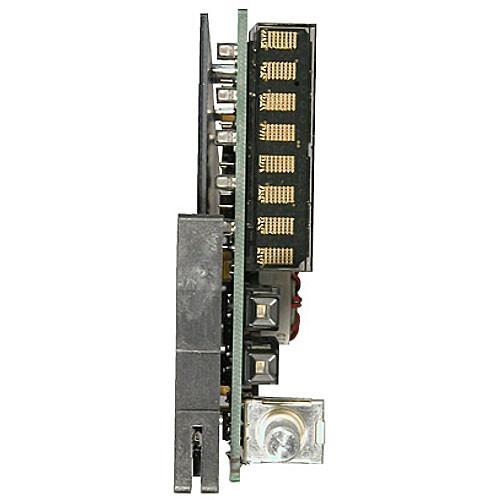

It uses 10-bit processing and includes an analog black reference input to sync timing of video output. A seven-segment LED display provides a visual reference for signal status. It is designed for use in the DigiFlex video management system. - Composite to SDI Conversion with DigiFlex
- Use this paired set of modules to convert composite video to SDI video in the DigiFlex video management system.
- NTSC & PAL
- This unit supports both NTSC and PAL formats.
- Genlock
- It features analog genlock to lock signals to a master sync source.
- Frame Synchronizer
- It includes an integral frame synchronizer.
In the Box Link Electronics DigiFlex 1261/1061 Analog to SDI Converter with Frame Sync Module Ten-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics DigiFlex 1261 1061 Analog to SDI Converter with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

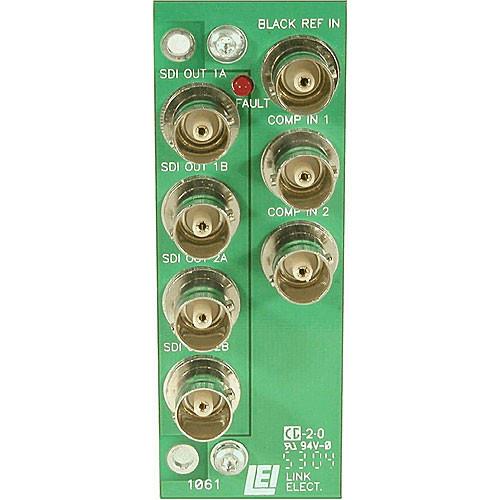

Technical parametersLink Electronics 1261/1061 Specs | Input | Number of Inputs: (2) analog video
Connector: 75 Ohm BNC
Signal Level: 1V, nominal
Impedance: 75 Ohms
Return Loss: >40dB up to 10MHz
Hot Switch Lock: between 15 to 40 frames | | Output | Number of Outputs: (2) SDI each channel
Standards: NTSC or PAL
Connector: 75 Ohm BNC
Impedance: 75 Ohm terminated into a 1% load
Return Loss: >25db
Output Level: 800 mV
DC Offset: 0V +/-0.1V
Rise Time: 555pS
Fall Time: 540pS
Low Frequency Jitter: 0.31 UI
Alignment Jitter: 0.50 UI | | Genlock | Signal Type: analog blackburst, high-impedance loop
Frequency Lock Range: 20ppm from nominal | | Power | 6W | | Dimensions (WxD) | 10 x 4.27" | | Weight | 7 oz | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
