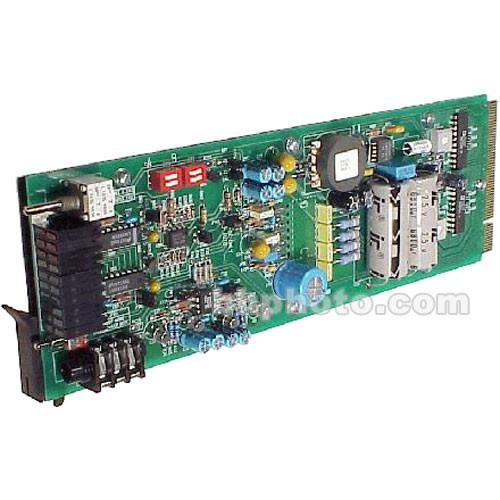

Product description The DigiFlex 1626 from Link Electronics is a dual-cell analog amplifier designed to boost an internal or external line-level stereo signal to an audible speaker level. It is a single module with a rear 1018 cell for use with 1000 series products. The DigiFlex 1626 features an audio source selector switch, volume control, and a 1/4" jack for headphone monitoring. Speakers are connected to the 1018 cell via screw terminal blocks.
A low-power mode is available that limits total speaker output to 5 watts. This is ideal for speaker protection, conserving power usage, or preventing heat buildup. Input signal LEDs are provided for monitoring either the internal or external source. - Selectable internal/external audio source
- 18 watts of audio power per channel
- Screw terminal connectors
In the Box Link Electronics DigiFlex 1626 18W Analog Audio Monitor Amplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics DigiFlex 1626 18W Analog Audio Monitor Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics DigiFlex 1626 Specs | Inputs | 1 x External Stereo 6-Position Screw Terminal Block
1 x Internal Stereo Frame Bus | | Impedance | Input and Output: Greater than 20 kOhms (Balanced) | | Common Mode Rejection Ratio | Greater than 70 dB @ 60 Hz, 0 dBu | | Signal Level | +24 dBu Max. | | Speaker Output | 2 x 2-Position Screw Terminal Block | | Speaker Impedance | Output: 4 Ohms Minimum | | Output Power | Auto BTL/SE Mode, 8 Ohms: 5 W RMS
Auto BTL/SE Mode, 4 Ohms: 14 W RMS
Single Ended Mode, 8 Ohms: 1.2 W RMS
Single Ended Mode, 4 Ohms: 2.5 W RMS | | Headphone Output | 1 x 1/4" / 6.3 mm) Phono Jack
Impedance: 32 Ohms Nominal | | Buss I/O | 1 x 6-Position Stereo Screw Terminal Block (+24 dBu Max Signal) | | Indicators | 2 x 10-LED Signal Level Column | | Controls | Input Selection Switch
Volume Control
Power Limiting Jumper
Bar or Dot Graph Jumpers | | Temperature | 32 to 122°F / 0 to 50°C Ambient | | Humidity | 10% to 90% Noncondensing | | Power | +12 VDC @ 600 mA | | Dimensions (H x W x L) | 3.2 x 1.0 x 10.0" / 8.1 x 2.5 x 25.4 cm | | Weight | 9.5 oz / 269.3 g | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
