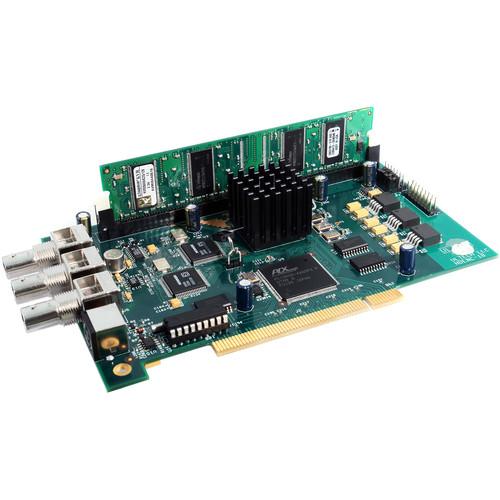

User Manual for Link Electronics Dual Channel Upgrade for HDE-3000 Encoder to HDE-3000 2 Dual Encode Click to enlarge the picture
Contents of the user manual for the Link Electronics Dual Channel Upgrade for
- Product category: Closed Caption Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Closed Caption Equipment
|
User manual for the Link Electronics Dual Channel Upgrade for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The HDE-3000 is a high definition HD SDI or standard definition SD SDI encoder for professionals that meets the strictest requirements for broadcast use. The HDE-3000 is capable of inserting slates, bugs, TV rating icons and subtitles with field 1 synchronization while encoding closed caption data. The HDE-3000 encodes data into the vertical ancillary portion of SMPTE 292M HD SDI video per SMPTE 334. All ATSC video standards are supported.
The optional dual encoder HDenc gives the operator the ability to run two separate caption or graphics jobs at the same time. It also allows for two separate time code inputs. The dual HDE-3000/2 can reduce encoding time by allowing the operator to encode captions in High Definition or Standard Definition simultaneously.
A built-in Closed Caption Decoder will display open captions on the video output for HD or SD. The dual encoder, HDE-3000/2 can display OPEN on one HDenc and CLOSED on the second HDenc.
The HDE-3000 will encode or monitor popular XDS packets including VCHIP, CGMS, and TSID. A selectable safe title area is provided to insure graphics are displayed in the viewable area. The optional Drag and Drop software allows for quick and simple additions of graphics to any job.
With the HDE-3000 network capability a single or multiple HDE-3000's can be controlled remotely from any Windows based PC.
The HDE-3000 supports the following HD SDI standards, 1080i, 1080p, 1080psf, and 720p. It also supports SD NTSC and PAL SDI. The HDE-3000 will support most caption file formats and will translate EIA-608 captions into the EIA-708 format. VANC encoding and decoding is also available for SD SDI. The encoded line in HD is selectable by the user. It is also capable of up-converting CC2 or CC3 to EIA-708, Service 2. The offset and amplitude of inserted line 21 (22 PAL) for SD can be controlled by the HDE-3000. The HDE-3000 also becomes a selectable format Black Burst generator with no input signal.
- Key Features
-
- Networkable
- HD & SD SDI I/O
- USB, 2 Front Panel
- Ideal for Broadcast or Post
- Field Upgradable Software
- Up-Convert 608 to 708 captions
- Built-in LTC Time Code Reader
- VGA monitor to Preview Captions
- Two independent I/O COM Ports
- Full Screen Character Inserter (Subtitles)
- No PC or Caption/Subtitle Encoding Software Required
- Reads Caption Files Directly From Server or USB Drive
- Solid Sate Hard Drive
- GPI Triggered Bypass and Weather Lift
Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics Dual Channel Upgrade for HDE-3000 Encoder to HDE-3000 2 Dual Encode in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 3000-2DUAL Specs | | | Type | Closed caption encoder plug-in card | | | | Terminals | (1) x HD-SDI input - BNC
(2) x HD-SDI output - BNC
(1) x LTC Input |
