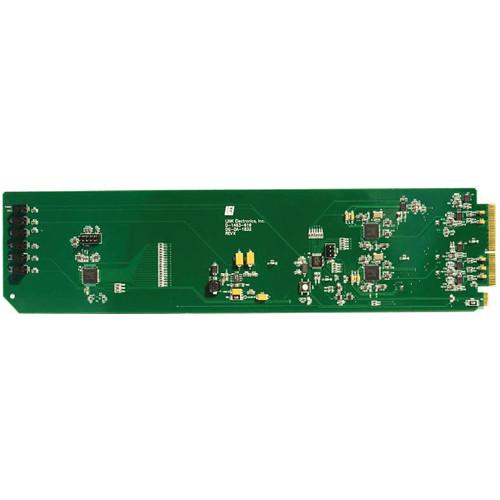

User Manual for Link Electronics Dual MD SDI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Link Electronics Dual MD SDI Distribution
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics Dual MD SDI Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics Dual MD SDI Distribution Amplifier regenerates error signals that get attenuated when carried over long distances via cables. In addition to being compatible with video signals such as SMPTE 259M, 344M, and 292M, it also supports SD signals up to 250' at 270 MBps and HD up to 100 feet at 1.485 GBps. The amplifier can be used with 8 outputs or as a dual MD SD SDI distribution amplifier (each with 4 outputs) and as a DVB-ASI distribution amplifier. It can also be used as a 2 x 1 HD SD video switcher or an SDI input video presence detector.The Dual MD SDI Distribution Amplifier resurrects the error signal by automatic equalization, re-clocking, and DC restoration. Various functions of the amplifier are controlled via the frame dashboard. Located on the front card edge are LED buttons that indicate the different operating conditions and signals that are locked. - Regenerates error signals that get attenuated when carried over long distances via cables
- Supports SD signals up to 250' at 270MBps and HD up to 100' at 1.485 GBps
- Compatible with video signals such as SMPTE 259M, 344M, and 292M and opengear devices
- Can be used with 8 outputs or as dual amplifiers (each with 4 outputs)
- Acts a 2 x 1 HD SD video switcher or an SDI input video presence detector
- Can also be used as a DVB-ASI distribution amplifier
- Resurrects the error signal by automatic equalization, re-clocking, and DC restoration
- Auto format selects the correct video format
- Programmable power-up settings
- Various functions can be controlled by the frame dashboard
- Located on the front card edge are LED lights that indicate the different operating conditions and signals that are locked
UPC: 705641990603 In the Box Link Electronics Dual MD SDI Distribution Amplifier 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics Dual MD SDI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LOG-1832 Specs | Serial Digital Video Input | Number of Inputs: 1, or two for 1X4 operation
Connectors: BNC
Standards:
- Composite: 143Mb/s
- Component: 177Mb/s, 270Mb/s, 360Mb/s, 540Mb/s
- HD Component: 1.4835/1.485Gb/s
Impedance: 75 Ω
Return Loss: >15dB Signal Level: 800mV
Input Cable Length Max:
- SD, Restore ON: 850' (259 m) @ 270Mb/s
- SD, Restore OFF: 250' (76.2 m) @ 270Mb/s
- HD, Restore ON: 250' (76.2 m) @ 1.485Gb/s
- HD, Restore OFF: 50' (15.2 m) @ 2.9Gb/s
CMR: 25 Vp-p, up to 60Hz | | Digital Outputs | Number of Outputs: 8, or Dual 1X4
Connectors: BNC
Standards: Same as input
Impedance: 75 Ω
Return Loss: >15dB
Signal Level: 800mV
Rise & Fall Time:
- SD: 220ps Max
- HD: 800ps Max
Overshoot: 8% of Amplitude
Additive Jitter:
- SD at 270Mb/s: 25ps p-p, typical
- HD at 1.485Gb/s: 15ps p-p, typical | | Front Panel | Front Panel LED:
- Lock Detect: Green LED
- SD: Green LED
- HD: Red LED
Front Panel Switches:
- Re-Clock: On/Off | | Power Consumption | 4.2W | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Dimensions (HxWxL) | 2.8 x 5 x 8.3" (71 x 127 x 211mm) | | Weight | 8 oz (227g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 6.0" |
