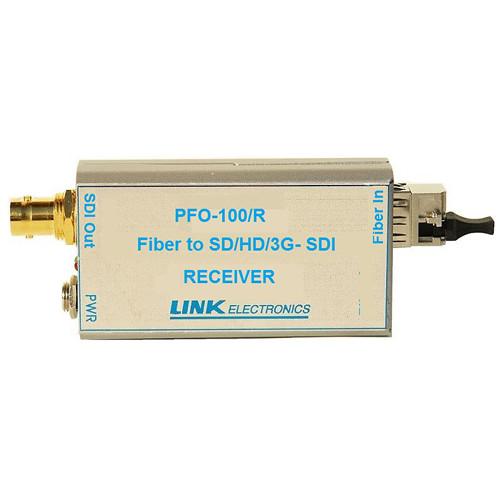

Product description Provided by third party: The PFO-100-R is a compact, and high-quality 3G/HD/SD-SDI or ASI fiber optics transmission system. This unit operates with single-mode fiber optics cable or, multi-mode fiber optics cable can be requested for shorter transmission distances. The module is SDI pathological test compliant and features a built-in equalizer, cable driver, and re-clocker. The Link PFO series has signal jitter elimination circuitry to ensure high-quality signal transmission over long distances, with fiber optic cable on both the transmitter and receiver. The PFO-100R (receiver) is a matched pair for specific wavelengths, either the standard 1310 nm or any requested wavelength between 1270-1610 nm. At only 4 oz., and capable of transmitting up to 24 miles (40 km), or 48 miles (80 km) available on request, the portable and powerful system are ideal for a wide variety of applications, including cross-town fiber links, cross-campus production, remote camera links and pre-installed fiber venues.
The PFO-100-R supports SMPTE ST 424 (3G-SDI 3Gb/s), SMPTE ST 292 (HD-SDI 1.5Gb/s), SMPTE ST 259 (SD-SDI 143/270/360 Mb/s), or SMPTE ST 310 (DVB-ASI). The modules include LED indicators to display Power ON and SDI signal presence from BNC (transmitter) or from fiber optic (receiver), providing critical system diagnostic information at a glance without the need for additional test equipment. The 3G/HD/SD-SDI or ASI fiber optical transmission system uses its own power supply or any 5 volt DC supply, with a standard latching power jack DC input. Due to the advanced digital fiber optic transmission technology, there is no need to make any adjustments with a simple set up and ease of operation.
- Key Features
-
- Portable, lightweight, reliable, efficient and quick
- Easy installation
- Class 1 FDA and IEC60825-1 Laser Safety Compliant Pathological test compliance
- Supports embedded audio Up to 40 km of fiber cable Low system jitter
- Power from 5 VDC
- Digital diagnostic function
- High durability design
Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics Fiber Optic 3G HD SD-SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PFO-100R Specs | | | Device Type | Video extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Transfer Rate | 3 Gbps | | Optical Wave Length | 1310 nm | | Max Transfer Distance | 24.9 miles | | Status Indicators | Power, link/activity | | Features | Integrated equalizer | | | | Interfaces | 1 x 3G-SDI - BNC female
1 x network - LC single-mode female | | | | Compliant Standards | IEC 60825-1, FDA Class 1 | | | | Width | 3.2 in | | Depth | 2 in | | Height | 0.6 in | | Weight | 5.29 oz | | | | Min Operating Temperature | 77
