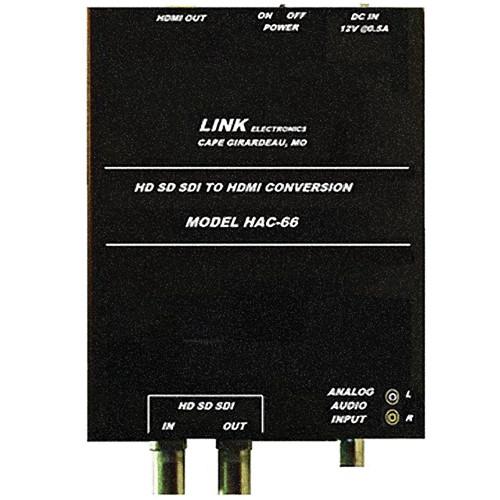

Product description The Link Electonics HAC-66 HD SD SDI to HDMI Converter converts a standard definition (SD) or high-definition (HD) Serial Digital Interface (SDI) to high-definition multimedia interface (HDMI), thereby allowing you to monitor the SDI stream without the use of SDI monitors. You can also hear the audio embedded in the SDI stream.
Featuring a built-in SDI equalizer, the converter supports SD signals up to a distance of 500’ (152.4 m) and HD signals up to a distance of 250‘ (76.2 m) via cables. The automatic format detection detects the format of the incoming signal (SD or SDI) and converts it into an HDMI signal.
In addition to an LED to indicate the on/off status of the system, the HAC-66 HD SD SDI to HDMI converter has a power switch that allows you to turn off the unit without unplugging it. An external wall-mounted 12V DC power supply is included.
- Converts a standard definition (SD) or high-definition (HD) Serial Digital Interface (SDI) to high-definition multimedia interface (HDMI), thereby allowing you to monitor the SDI stream without the use of SDI monitors
- Allows you to hear the audio embedded in the SDI stream
- Built-in SDI equalizer - supports SD signals up to a distance of 500' (152.4 m) and HD signals up to a distance of 250' (76.2 m) via cables
- Automatic format detection - detects the format of the incoming signal (SD or SDI) and converts it into an HDMI signal
- LED indicates the on/off status of the system
- Power switch - allows you to turn off the unit without unplugging it
- Comes with an external wall-mounted 12V DC power supply
In the Box Link Electronics HAC-66 HD SD SDI to HDMI Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics HAC-66 HD SD SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics HAC-66 Specs | Inputs | SDI - 1 75Ω BNC, 800mV, 270Mb/s and 1.485Gb/s
Digital Audio: First 2 Channels of Group 1in SDI Embedded Audio
Analog Audio: 2 Channels from 2 RCA Connectors | | Outputs | SDI: 1 75Ω BNC, 800mV, Format Follows Input (Active Loop Thru)
Return Loss: > 15 dB (5 to 750MHz), > 10 dB (0.75 to 1.5 GHz)
Level: 0.8 Vpp ± 10%
Rise Time: < 1.5ns SD, < 270 ps HD
Fall time: < 1.5ns SD, < 270 ps HD
Difference between rise time and fall time: within 0.5 ns SD, 100 ps HD
Jitter less than: 0.2 UI SD, 0.1 UI HD
HDMI: Rev 1.3b, Type A receptacle
Video : Format Follows SDI Input
Audio : SDI Embedded Audio or Analog Audio Input | | Formats | 720 X 480: NTSC
720 X 576: PAL
1280 X 720: 720 Progressive 60/59.94/50
1920 X 1080: 1080 Interlaced 60/59.94/50 | | Front Panel Controls | Dip Switches: Used for Audio Input Selection | | Environmental | Temperature: 0 to 40ºC Ambient
Humidity: 10% to 90% non-condensing
Power: 30W | | Dimensions | 3.25 x 1.5 x 4.21" (8.3 x 3.8 x 10.7 cm) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
