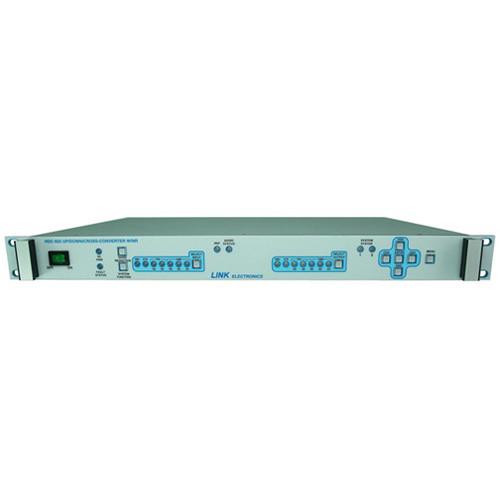

Product description The HDC-925 Up/Down/Cross Converter from Link Electronics is a DTV format converter that can up-, down-, and cross-convert SD/HD-SDI signals in real time. It is designed to offer enhanced performance through a number of proprietary algorithms, such as PixelMotion De-Interlacing, Multi-Directional Diagonal Filters, and Per-Pixel Temporal Recursive Noise Reduction. AFD can be read and inserted for down-conversion or pass-through for cross-converting. It also features a proprietary FlexView Aspect Ratio, a non-linear anamorphic aspect ratio designed for converting 4:3 aspect ratio to 16:9 aspect ratio without the distortion that is often associated with anamorphic stretching. This unit additional supports and converts multiple formats. - Analog Video Matrix for AVS-816 Audio-Video Routing Switcher
- This unit is an analog video matrix card designed for use in the AVS-816 Audio-Video routing switcher.
- Control
- Software supplied with the AVS-816 routing switcher allows you to control the functionality of this card, or use the AVS-816's remote control.
In the Box Link Electronics HDC-925 Up/Down/Cross Converter Matrix Card Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics HDC-925 Up Down Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics HDC-925 Specs | Video Input | SD & HD SDI Input:
• SD HD SDI, 10-bit serial digital input at 270Mb/s per SMPTE-259-C or 20-bit serial digital input at 1.485Gb/s per SMPTE 292-1997, SD audio embedding per SMPTE 272M or HD audio embedding per SMPTE-299
• Formats SD: 480i59.94, 576i50
• Formats HD: SMPTE-274M: 1080i59.94, 1080i50, 1080sf23.98
• Formats HD: SMPTE-296M: 720p59.94, 720p50
• Cable Length SD: 300m Belden 1694A at 270Mb/s and HD: 110m Belden 1694A at 1.485Gb/s
• Automatic input format detection or Manual input format selection
• Active loop out | | Video Output | SD & HD SDI Output (2):
• SD HD SDI, 10-bit serial digital output at 270Mb/s per SMPTE-259-C or 20-bit serial digital output at 1.485Gb/s per SMPTE 292-1997, SD audio embed per SMPTE 272M or HD audio embed per SMPTE-299
• Formats SD: 480i59.94, 576i50
• Formats HD: SMPTE-274M: 1080i59.94, 1080i50, 1080sf23.98
• Formats HD: SMPTE-296M: 720p59.94, 720p50
• Return Loss: >15dB up to 1.5GHz per SMPTE-292M
• Jitter: <0.2UI as per SMPTE-292M | | Reference Input | • SD Blackburst - SMPTE-170M or HD Tri-level Sync - SMPTE 274M / SMPTE296M
• Active loop out
• Pixel and Line adjustment (range of adjustment based on selected output format) | | Analog Audio I/O | • 8 channels of embedded audio
• Sampling: 48KHz
• Quantization: SD: 20-bits, HD: 24-bits | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
