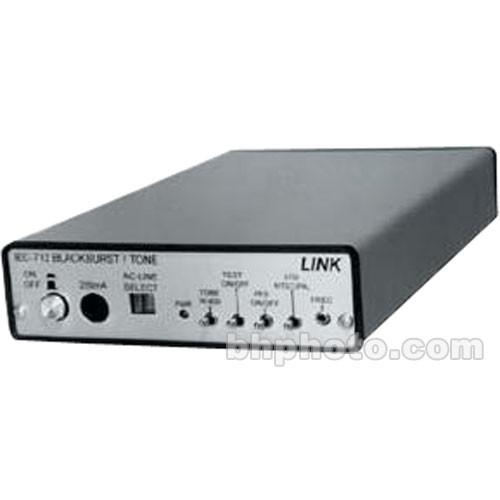

Product description The Link Electronics IEC-712 is a Black Burst generator; it outputs multiple Black Burst signals referenced to an accurate internal timebase. This device provides audio tone and NTSC or PAL television systems are selectable. - Blackburst Generator
- The Black Burst generator creates a reference signal for many of todays video tape formats.
- System Selectable
- A front panel selection is offered for NTSC or PAL television systems.
- AC Line Select
- This unit is avialable for worldwide operation featuring a front panel AC line select switch.
- Audio Tone
- A selectable audio tone is offered featuring 1K or 400 Hz test tones on a terminal block connector.
UPC: 705641990047 In the Box Link Electronics IEC-712 Master Blackburst Generator - PAL NTSC, Audio Tone 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-712 Master Blackburst Generator - PAL NTSC, Audio Tone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics IEC-712 Specs | Output | Black Burst x6, NTSC or PAL, on BNC connectors
Balanced Audio Tone, 1K or 400 Hz, on a terminal block connector | | Television System | NTSC or PAL Selectable | | Control | Switches:
Power Button
Tone Selection
Pedestal On/Off
NTSC or PAL
Test On or Off
AC Line Select | | Power Source | 120 or 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 5.5 x 9.25 x 1"
14 x 23.5 x 2.5cm | | Weight | 2.5 lbs
1.13 kg | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 12.5 x 5.75 x 2.0" |
