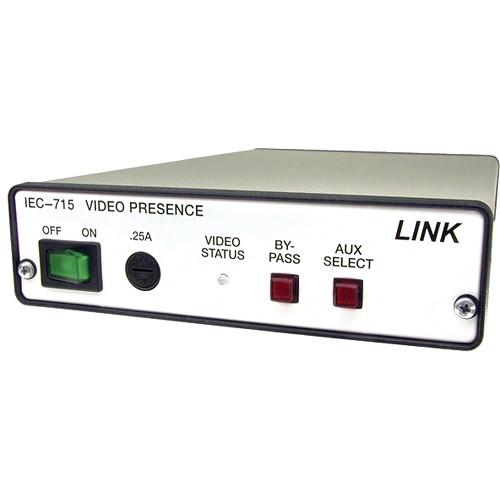

Product description The Link Electronics IEC-715 Video Presence Detector with Audio Follow monitors primary video input signal. In the event of primary video signal loss, it automatically switches to an auxiliary video input. A unique noise immunity circuit makes the device immune to high-level noise on input. In case of a power failure, the primary video signal gets a hard by-pass through a relay. The user-friendly IEC-715 video presence detector lets you override the automatic change-over function and select either a primary or auxiliary video source. This can be done using the By-Pass and AUX Select switches on the front panel, which also houses the Status LED. The audio-follow-video capability for mono or stereo audio switching is facilitated by a captive screw terminal sub-module. Peripheral gear can be controlled using dry contacts for normally open (NO) and normally closed (NC) via a three-terminal screw block. Encased in a stand-alone chassis, IEC-715 Video Presence Detector can be stored in a 1RU frame with a capacity of 3 units (700 series). - Monitors primary video input signal
- Automatically switches to an auxiliary video input in the event of a primary video signal loss
- Unique noise immunity circuit makes it Immune to high-level noise
- Primary video signal gets a hard by-pass through a relay in case of a power failure
- Allows override of automatic change-over function and select primary or auxiliary video source
- Front Panel features - By-pass switch, AUX Select switch, and Status LED

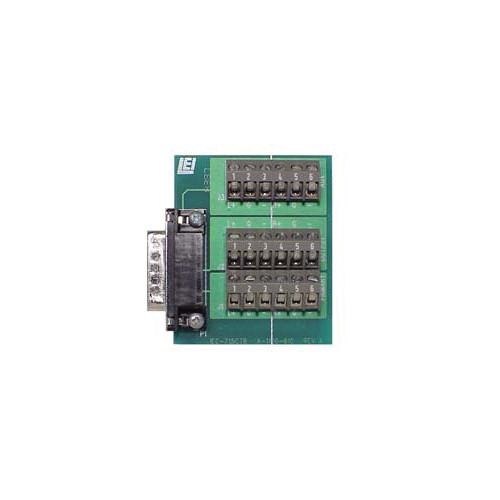

- Audio-follow-video capability for mono or stereo audio via captive screw terminal sub-module
- Peripheral gear connectivity using dry contacts for normally open (NO) and normally closed (NC) via a three-terminal screw block
- Encased in a stand-alone chassis and can be stored in a 1RU frame with a capacity of 3 units (700 series)
In the Box Link Electronics IEC-715 Video Presence Detector with Audio Follow 10 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-715 Video Presence Detector with Audio Follow in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

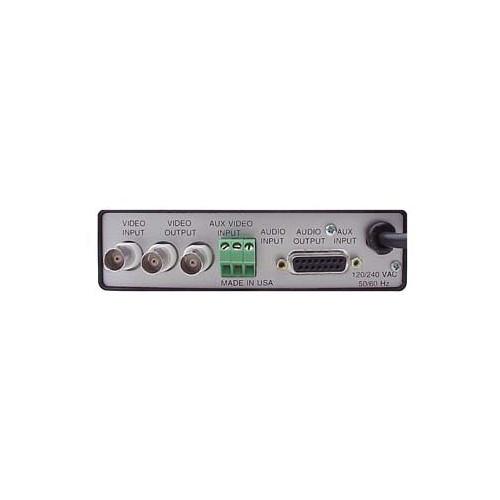

Technical parametersLink Electronics IEC-715 Specs | Video Input | Number: Two 75Ω BNC Connectors
Level: 1 Volt p-p Nominal
Detect Threshold: -14 dB
Detection Method: Vertical Sync
Aux. to Primary Cross Talk: >58 dB | | Video Output | Type: Passive, 75Ω BNC
Frequency Response:
-0.1 dB at 20 MHz
-.15 dB at 30 MHz
-.20 dB at 40 MHz | | Audio | Type: Four (4) Form C Contacts
Connectors: Sub D Connector with Screw Terminals
Configuration: Stereo, balanced, single ended
Aux. to Primary Cross Talk: >100 dB
Left to Right Channel: >95 dB | | Indicators | Primary Video: Green
Auxiliary Video: Red | | Dry Contact Switch | Configuration: SPDT, Form C
Power Rating: 0.5A/120VAC
Terminal Type: Captive Screw Terminals | | Environmental | Temperature: 32 ~ 122°F (0 ~ 50°C) ambient
Humidity: 0 to 90% non-condensing | | Power | Input: 120/240VAC
Power: 0.3 watts | | Dimensions (HxWxD) | 1 x 5.5 x 9.3" (25 x 140 x 236mm) | | Weight | 2.4 lbs (1.1kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
