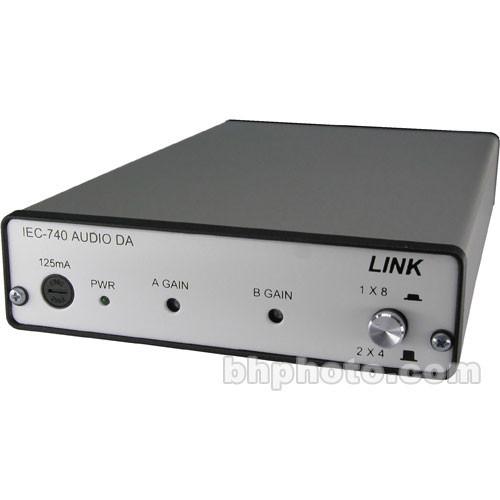

User Manual for Link Electronics IEC-740 Distribution Amplifier, 1x8, 2x4 - Balanced or Unbalanced Audio, Terminal Blocks Click to enlarge the picture
Contents of the user manual for the Link Electronics IEC-740 Distribution Amplifier, 1x8,
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics IEC-740 Distribution Amplifier, 1x8, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics IEC-740 is a high quality, dual configuration, audio distribution amplifier. It can be switched from being a single 1x8 DA to a dual 1x4 DA with a simple switch change on the front panel. This unit also has the ability to be configured for balanced or unbalanced audio signals. - High Quality Balanced Stereo Audio
- At over 80 dB signal to noise ratio and two balanced audio channels per output, this unit passes a very clean audio signal for critical applications.
- Selectivity
- The IEC-740 has the ability to switch from a 1x8 Mono DA to stereo 1x4 DA's depending on the users needs.
- Adjustable
- Front panel trim potentiometers give the user control over each channel's level.
- Balanced or Unbalanced
- The screw type terminal blocks can be configured for balanced or unbalanced audio distribution.
In the Box Link Electronics IEC-740 Distribution Amplifier, 1x8, 2x4 - Balanced or Unbalanced Audio, Terminal Blocks 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-740 Distribution Amplifier, 1x8, 2x4 - Balanced or Unbalanced Audio, Terminal Blocks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics IEC-740 Specs | Input | Stereo or Mono audio@ 20K ohms, balanced or unbalanced, on terminal block connectors | | Output | Stereo x4 or Mono x8 audio@ 66 ohms, balanced or unbalanced, on terminal block connectors | | Coupling | Not Specified by Manufacturer | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 80 dB | | Audio THD | 0.01% | | Audio Control | Separate trim potentiometers for Channels one and two
Selector switches for 1x8 and 2x4 configuration
All on front panel | | Dimensions | 5.5 x 9.25 x 1"
13.9 x 23.5 x 2.5cm | | Weight | 2.25 lbs
1.02 kg | | Power Source | 120 VAC 60 Hz
240 VAC 50 Hz | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.0 x 5.5 x 2.0" |
