User Manual for Link Electronics IEC-750 1x8 Distribution Amplifier - Composite Video, Dual 1x4 Configuration, Gain Control Click to enlarge the picture
Contents of the user manual for the Link Electronics IEC-750 1x8 Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics IEC-750 1x8 Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

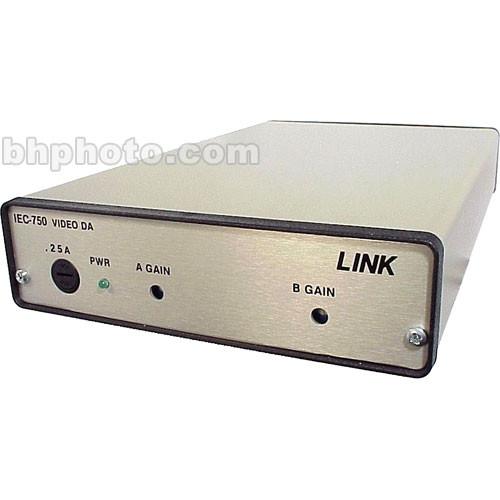

Product description The Link Electronics IEC-750 is a 1x8 composite video distribution amplifier; this unit offers the ability to operate as a dual 1x4 amplifier with the push of a rear panel button. It features gain controls and a compact size. - Differential Input
- A switch on the rear panel lets the user select differential or single ended inputs. This feature allows this unit to operate as a 1x8 DA or a dual 1x4 DA.
- Gain Control
- Gain controls for each bank of four outputs allows the user to adjust video levels to correct parameters.
- Compact Size
- The compact size of the IEC-750 allows the user to mount three units in a one rack unit space.
UPC: 705641990054 In the Box Link Electronics IEC-750 1x8 Distribution Amplifier - Composite Video, Dual 1x4 Configuration, Gain Control 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-750 1x8 Distribution Amplifier - Composite Video, Dual 1x4 Configuration, Gain Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics IEC-750 Specs | Input | Composite Video x2, 1 Vpp @ 75 ohms
On one BNC connector | | Output | Composite Video x8, 1 Vpp @ 75 ohms
On eight BNC connectors | | Video Bandwidth | 20 MHz | | Video Signal-to-Noise Ratio | 60 dB | | Differential Phase | 0.12° | | Differential Gain | 0.15% | | Video Control | Front Panel Trimmers
A Side Gain
B Side GainRear Panel Button
2x4 DA
1x8 DA | | Coupling | DC Servo AC | | Dimensions (WxDxH) | 5.5 x 9.25 x 1.0"
13.97 x 23.5 x 2.5cm | | Weight | 2.25 lbs
1.02 kg | | Power Source | 120 to 240 VAC @ 50/60 Hz | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.75 x 6.0 x 1.7" |
