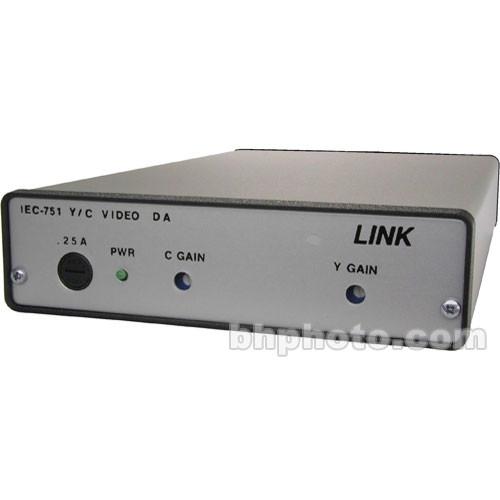

Product description The Link Electronics IEC-751 is a 1x4 S-Video Distribution Amplifier; it accepts one Y/C S-Video signal and outputs four identical signals. It is compact and offers gain control. - Gain Control
- Y and C gain control is offered for user convenience.
- Compact Size
- Measuring 5.5" wide, this device will fit into small studio spaces or desktops with ease.
- Fuse
- Front panel access to a protection fuse allows easy replacement.
UPC: 705641990641 In the Box Link Electronics IEC-751 1x4 Y/C S-Video Distribution Amplifier - 4-Pin, Gain Control 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-751 1x4 Y C S-Video Distribution Amplifier - 4-Pin, Gain Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics IEC-751 Specs | Input | Y/C S-Video, Y: 1 Vpp C: 0.287 Vpp @ 75 ohms, on a 4-Pin connector | | Output | Y/C S-Video x4, Y: 1 Vpp C: 0.287 Vpp @ 75 ohms, on 4-Pin connectors | | Video Bandwidth | 20 Mhz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.12° | | Differential Gain | 0.15% | | Video Control | Y and C Gain Control | | Coupling | DC Servo AC | | Power Source | 120 VAC @ 60 Hz
240 VAC @ 50 Hz | | Dimensions (WxDxH) | 5.5 x 9.25 x 1.0"
14 x 23.5 x 2.5cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.2 x 6.3 x 2.1" |
