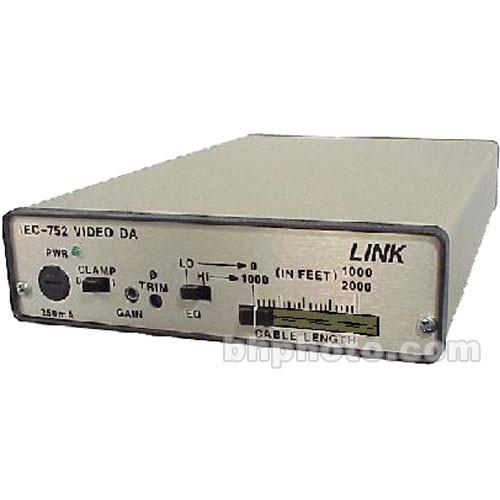

Product description The Link Electronics IEC-752 is a 1x6 Composite Video Distribution Amplifier; it accepts one composite video signal and outputs six identical signals. This DA features cable EQ and a differential input. - Feedback Clamp
- A feedback clamp is offered to adjust to user parameters.
- Cable EQ
- A cable equalization adjustment allows cable usage of up to 2000 feet.
- Delay
- A delay allows the user to adjust for long cable runs and matching of signal propagation delays.
- Differential Input
- The differential input assists in the reduction of noise in the system.
- Gain Control
- Signal gain control can be adjusted + or - 3 dB.
In the Box Link Electronics IEC-752 1x6 Composite Video Distribution Amplifier - BNC, Cable EQ, Delay 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-752 1x6 Composite Video Distribution Amplifier - BNC, Cable EQ, Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics IEC-752 Specs | Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector | | Output | Composite Video x6, 1 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 30 Mhz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.1° | | Differential Gain | 0.1% | | Video Control | Cable EQ
Clamp On/Off
Delay Trim
Gain | | Coupling | DC Servo | | Power Source | 120/240 VAC @ 50/60 Hz | | Dimensions | 5.5 x 9.25 x 1"
14 x 23.5 x 2.5cm | | Weight | 2 lbs
907 grams | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
