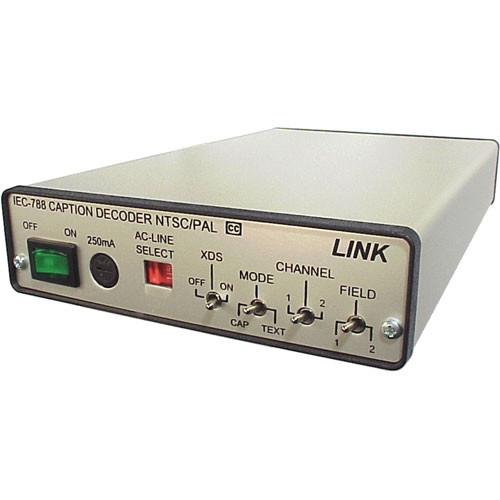

Product description The Link Electronics IEC-788/R/SE is a Closed Caption decoder for the NTSC and PAL television systems. With this device data channels and text select are offered for user applications. The required input signal is composite or Y/C video with caption data on line 21. This model offers a copyguard decoder for DVD playback. Note: The copyguard decoder is special order and is installed at the manufacturer - XDS
- Extended Data Services is offered for such signals as "V-Chip" information.
- Differential Input
- A complementary differential input amplifier assures high common mode rejection while its phase-linear keyer cleanly inserts decoded characters into the video image.
- Y/C Video
- This unit will decode Y/C video or composite according to the user's application.
- NTSC or PAL
- A switch or the rear panel allows the user to select decoding data within the NTSC or PAL television system.
- Application
- This device is useful when a monitor without a Closed Caption decoder is used in broadcast monitoring; this device can be mounted close to the monitor because of its compact size.
- Copy Guard
- A copy guard decoder is offered for the user's convenience; this operates via clamping circuitry.
- Remote
- Basic remote capabilities are offered with contact closure on a mini-jack.
UPC: 705641990061 In the Box Link Electronics IEC-788/R/SE Closed Caption Decoder Main Unit Remote Special Order Copyguard Clamp 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics IEC-788 R SE Closed Caption Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

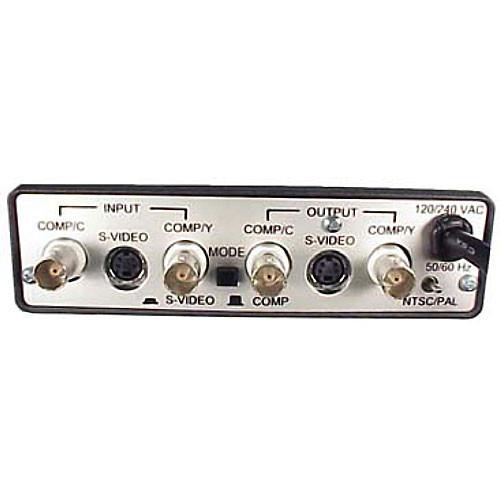

Technical parametersLink Electronics IEC-788/R/SE Specs | Input | Composite Video, Looping, 1Vpp @ 20K ohms, on BNC connectors
Y/C S-Video, Y: 1Vpp, C: 0.6 Vpp @ 75 ohms, on a 4-pin connector | | Output | Composite Video x2, Character Video 90 IRE, Background Video 10 IRE, @ 75 ohms, on BNC connectors

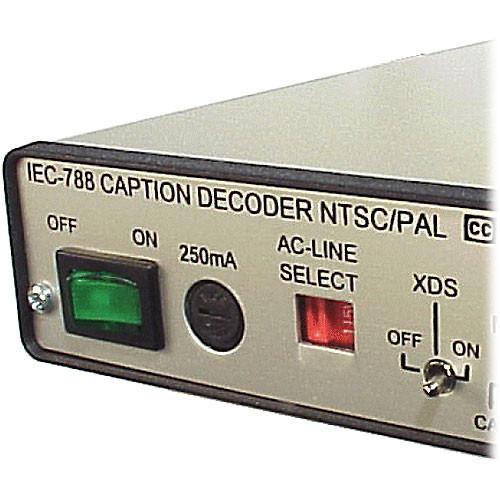

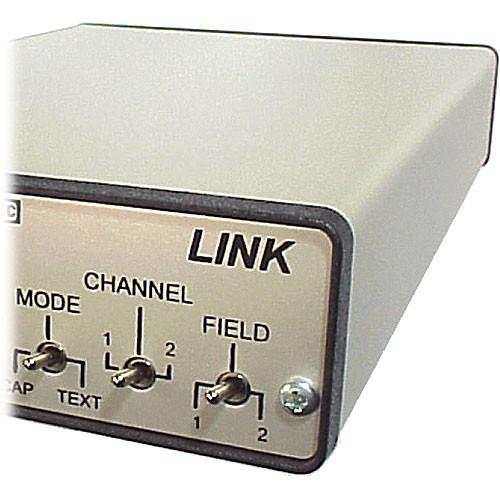

Y/C S-Video, Y: 1Vpp, C: 0.6Vpp @ 75 ohms, on a 4-pin connector | | Control | Front Panel:
OFF/ON
XDS ON/OFF
Mode CAP/TEXT
Channel 1 or 2
Field 1 or 2 | | Power Source | 120-240VAC @ 50/60Hz | | Dimensions | 5.5 x 9.25 x 1"
14 x 23.5 x 2.5cm | | Weight | 2.6 lbs
1.2kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
