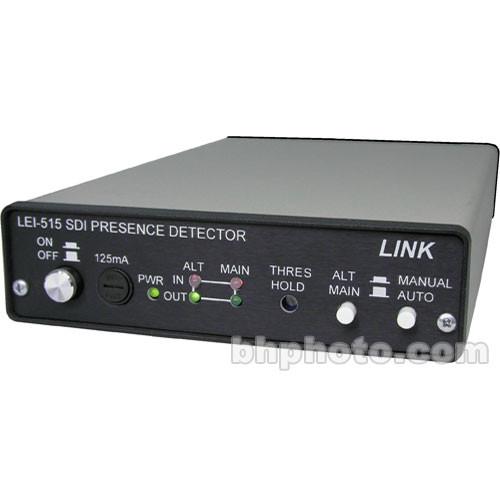

User Manual for Link Electronics LEI-515 SDI Presence Detector Click to enlarge the picture
Contents of the user manual for the Link Electronics LEI-515 SDI Presence Detector
- Product category: Test Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Test Equipment
|
User manual for the Link Electronics LEI-515 SDI Presence Detector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The LEI-515 SDI Presence Detector from Link Electronics is a unit designed to monitor (2) serial component digital signals and automatically switch to a backup auxiliary source in instances of signal failure. This module also features "audio follow video" functionality, which is switched internally with a captive-screw terminal sub-module. This unit supports both Composite and Component video signals.
This unit's input receiver device monitors the incoming signal level and produces a DC voltage proportional to the amount of gain and equalization necessary to recover and reshape the signal. If automatic gain/EQ voltage exceeds the threshold voltage, this device will switch to auxiliary input.
Adjustment features give this unit the ability to select auxiliary input before data errors are visible in the primary input. Front panel switches allow you to override the automatic changeover functions and choose either video source. Dual front-panel LEDs indicate the presence or absence of video input signals. Switching is accomplished with an active 2:1 multiplexer and a 75Ω matched-impedance relay allows the input signal to pass through even if power is lost. - Detection & Backup
- This unit allows you to monitor (2) serial component digital signals and automatically switch to a backup auxiliary source in instances of signal failure.
- Multi-Format Support
- This unit supports both Composite and Component video signals.
- Manual Override
- Choose to override this unit's automatic features and choose the video source as needed.
- LED Indicators
- Dual front-panel LEDs indicate the presence or absence of video input signals.
UPC: 705641990108 In the Box Link Electronics LEI-515 SDI Presence Detector Detector Ten-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-515 SDI Presence Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-515 Specs | Video Input | SERIAL DIGITAL VIDEO INPUT:
Composite: 143Mb/s, SMPTE 259M-A
Component: 270Mb/s, SMPTE 259-C
Impedance: 75ÿ©
Return Loss: >15dB
Signal Level: 800mVÿ±1%
CMR: 30Vp-p, up to 60Hz
Connectors: BNC | | Audio | Type: Four (4) Form C Contacts
Connectors: Sub D Connector with Screw Terminals
Configuration: Analog & Stereo, balanced, single ended or AES/EBU Digital
Analog Aux. to Primary Cross Talk: > 100 dB
Analog Left to Right Channel: >95 dB | | Indicators | Input Alternate Digital Video: Green/Red LED
Input Main Digital Video: Green/Red LED
Output Alternate or Main: Green LED | | Dry Contact Switch | Configuration: SPDT, Form C
Power Rating: 0.5A/120VAC
Terminal Type: Captive Screw Terminals | | Operating Requirements | Temperature: 0° to 50° ambient
Humidity: 0% to 90% non-condensing | | Power | Input: 120/240 VAC
Power: 0.3 watts | | Dimensions (WxDxH) | 5-1/2 x 9-1/4 x 1" | | Weight | 2 lbs 7 oz. | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 6.0" |
