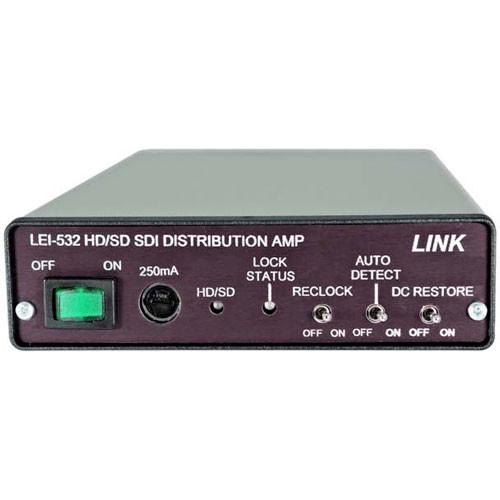

User Manual for Link Electronics LEI-532 SD HD-SDI & ASI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Link Electronics LEI-532 SD HD-SDI &
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics LEI-532 SD HD-SDI & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The LEI-532 SD/HD-SDI & ASI Distribution Amplifier from Link Electronics accepts (1) composite, component, or HD component video signal and distributes it to up to (4) outputs. This device will restore signals to their proper by reshaping them with an automatic equalization feature. It supports transmission distances from 250 to 750 feet depending upon the signal type.
LED lights on this unit provide a visual indicator of signal status. Up to (3) of these distribution amplifiers can be mounted in 1U of a standard 19" equipment rack by using the separately available PRT-700 rackmount kit. - SD/HD-SDI & ASI Distribution
- Use this unit to distribute (1) composite, component, or HD component video signal and distributes it to up to (4) outputs.
- Equalization
- Signals are equalized before being redistributed, ensuring their integrity and allowing for longer transmission distances.
- Standalone or Rackmount
- This unit's small size makes it well suited for desktop use, or it can be mounted in a rack with a separately available rackmount kit.
In the Box Link Electronics LEI-532 SD/HD-SDI & ASI Distribution Amplifier Distribution Amplifier Power Cord Ten-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-532 SD HD-SDI & ASI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-532 Specs | Inputs | Number of Inputs: 1
Connectors: BNC
Standards:
Composite: 143Mb/s
Component: 177Mb/s, 270Mb/s, 360Mb/s, 540Mb/s
HD Component: 1.4835/1.485Gb/s
Impedance: 75 Ohms
Return Loss: >15dB
Signal Level: 800mV
Input Cable Length (maximum):
SD: up to 750' @ 270Mbs
HD: up to 250' @ 1.485Gbs
CMR: 25Vpp, up to 60Hz | | Outputs | Number of Outputs: 4
Connectors: BNC
Standards: Same as input
Impedance: 75S
Return Loss: >15dB
Signal Level: 800mV
Rise & Fall Time:
SD: 220ps maximum
HD: 800ps maximum
Overshoot: 8% of Amplitude
Additive Jitter:
SD at 270Mb/s: 25ps pp, typical
HD at 1.485Gb/s: 15ps pp, typical
Reclocker/Jitter Improvement: 10% | | Power | Power: 4.2W
Voltage: 85 to 264VAC, 47 to 63Hz | | Dimensions (HxWxD) | 1.75 x 5.5 x 9.25" | | Weight | 2.5 lbs | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
