User Manual for Link Electronics LEI-547 Digital Audio Distribution Amplifier Converter - BNC , Terminal Blocks , Multi-Standard Digital, Analog Stereo Output Click to enlarge the picture
Contents of the user manual for the Link Electronics LEI-547 Digital Audio Distribution
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics LEI-547 Digital Audio Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

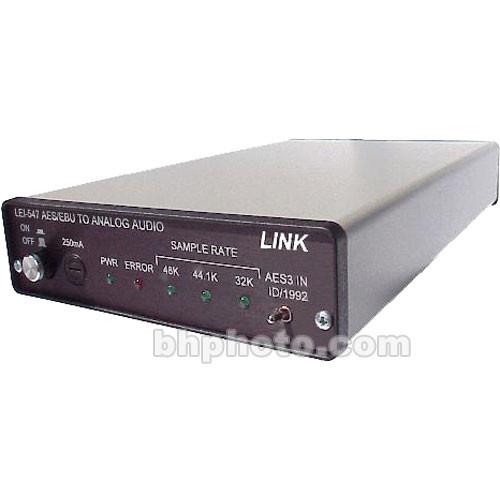

Product description The Link LEI-547 is a Digital Audio Distribution Amplifier and Converter; it accepts AES3-ID or AES3-1992 then outputs AES3-ID on BNC connectors and two analog balanced stereo signals on four terminal blocks. It features error detection and sample rate detection for the user's convenience. - Multiple Standards
- This device operates with two digital standards including, AES3-1992 and AES3-ID; selection of the standard is located on the front panel.
- Compact Size
- Measuring less than 6" wide, three units will fit into a standard studio rack space using the PRT-700 rack tray.
- Sample Rates
- Sample rates of 48 KHz, 44.1 KHz and 32 KHz are detected and displayed on the front panel utilizing LEDs.
- Transformer Coupled
- When inputs and outputs are coupled in this fashion elimination of ground loops are probable.
- D to A Conversion
- The digital inputs are converted to stereo balanced audio through an 18 Bit process.
- Data Errors
- Data errors are detected and reported by a front panel LED.
In the Box Link Electronics LEI-547 Digital Audio Distribution Amplifier/Converter - BNC (AES3-ID), Terminal Blocks (AES3-1992), Multi-Standard Digital, Analog Stereo Output 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-547 Digital Audio Distribution Amplifier Converter - BNC , Terminal Blocks , Multi-Standard Digital, Analog Stereo Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-547 Specs | Input | Digital Audio x2, 110 or 75 ohms, AES3-1992 on a terminal block or AES3-ID on a BNC connector | | Output | Digital Audio x4, 110 or 75 ohms, AES3-ID on BNC connectors
Analog Stereo Audio x2, @ 66 ohms, on terminal blocks | | Coupling | Transformer coupling | | Audio Bandwidth | Analog Output 20 KHz | | Signal to Noise Ratio | Analog Output 80 dB | | Audio THD | 0.003% on Analog Outputs | | Audio Control | Standard Selection on Front Panel | | Dimensions | 5.5 x 9.25 x 1"
13.9 x 23.5 x 2.5cm | | Weight | 2.25 lbs
1.02 kg | | Power Source | 120 VAC @ 60Hz | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
