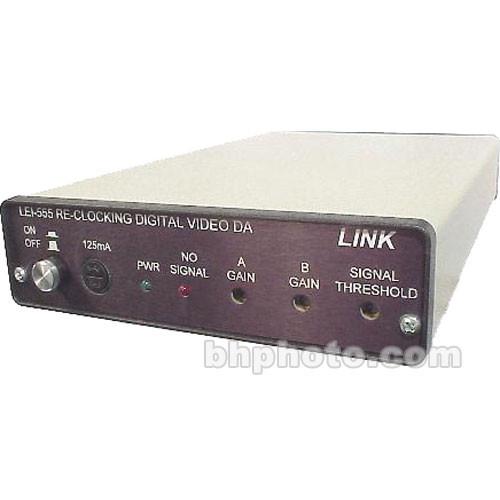

Product description The Link Electronics LEI-555 is a 1x6 SDI video distribution amplifier; this unit offers dual manual gain control in a compact size. - Gain Control
- Dual gain control outputs allows the user to adjust video levels on two 3 output banks to desired parameters. Each bank can be adjusted to separate cable lengths.
- Compact Size
- The compact size of the LEI-555 allows the user to mount three units in a one rack unit space.
- Equalization
- The signal is reshaped with automatic equalization also reslicing and DC restoring.
In the Box Link Electronics LEI-555 1x6 SDI Distribution Amplifier - Dual Gain Control, Desktop 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-555 1x6 SDI Distribution Amplifier - Dual Gain Control, Desktop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-555 Specs | Input | SDI Video, 143 Mb/s to 270 Mb/s @ 75 ohms, on a BNC connector | | Output | SDI Video x6, 143 Mb/s to 270 Mb/s @ 75 ohms, on BNC connectors | | Video Bandwidth | Accepts up to 270 Mb/s | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Differential Gain | Not Specified by Manufacturer | | Video Control | On and Off Button
A and B Gain control
Signal Threshold | | Coupling | Not Specified | | Dimensions (WxDxH) | 5.5 x 9.25 x 1.0"
13.97 x 23.5 x 2.5cm | | Weight | 2 lbs
8 oz | | Power Source | 120 to 240 VAC @ 50/60 Hz | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.9 x 6.0 x 1.8" |
