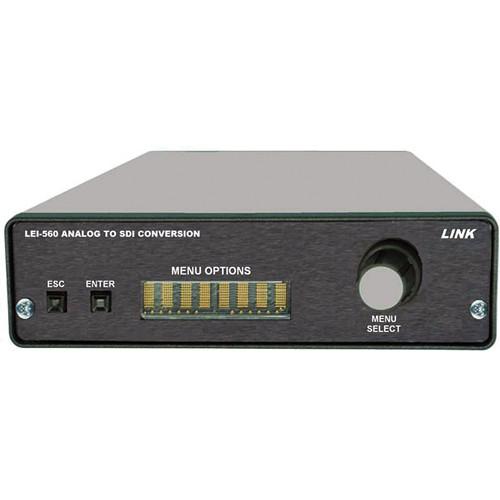

User Manual for Link Electronics LEI-560 Analog to SDI Converter Click to enlarge the picture
Contents of the user manual for the Link Electronics LEI-560 Analog to SDI
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics LEI-560 Analog to SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics LEI-560 Analog to SDI Converter is an all-in-one SD analog to digital converter that includes a frame synchronizer and a processing amplifier. It can also convert 1 analog video input to 2 isolated SDI outputs. Equipped with a 10-bit processor, the LEI-560 converter is ideal for broadcasting analog signals. It can be used as a standalone or Genlockable SD analog composite to SD SDI converter in any system. Using the LEI-560 converter, the input composite analog signal can be converted to 10-bit-parallel data and decoded to 4:2:2 digital component video. In case of loss of input signal, the LEI-560 Analog to SDI Converter offers no output or provides the last frame, field 1, field 2, black burst, and SMPTE color bars. Horizontal and vertical timing signals ensure synchronization between signals. In Genlock mode, the converter auto detects NTSC and PAL video formats. With the processor amplifier, you can control display features such as luma, chroma, black clip, and hue. Using the rotary encoder, you can adjust the processor amplifier and configure and browse through various menu settings. The front panel is equipped with an 8-character display to indicate the current operating mode of the LEI-560 Analog to SDI converter. With the Enter switch, you can make adjustments to the menu settings, and you can return to previous configurations using the Escape switch. - All-in-one SD analog to digital converter that also includes a frame synchronizer and a processing amplifier
- Additionally, it can also convert 1 analog video input to 2 isolated SDI outputs
- Equipped with a 10-bit processor, it is ideal for broadcasting analog signals
- Can be used as a standalone or Genlockable SD analog composite to SD SDI converter in any system
- Composite analog input signal is converted to 10-bit-parallel data and decoded to 4:2:2 digital component video
- In case of loss of input signal, the converter offers no output or provides the last frame, field 1, field 2, black burst, and SMPTE color bars
- Horizontal and vertical timing signals ensure synchronization between signals
- While working in Genlock mode, the converter auto detects NTSC and PAL video formats
- With the processor amplifier, you can control display features such as luma, chroma, black clip, and hue
- Rotary encoder allows you to adjust the processor amplifier controls and configure and browse through various menu settings
- Front panel with an 8-character display - indicates the current operating mode
- Enter switch - you can make adjustment to the menu settings
- Escape switch - you can return to previous configurations
- Clock-wise / anti-clockwise menu selection pattern
In the Box Link Electronics LEI-560 Analog to SDI Converter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-560 Analog to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-560 Specs | Analog Input | Number of Inputs: 1 Composite Video, 75 Ω BNC
Type: SD Analog Composite
Level: 1Vp-p SD +/- 3dB when terminated into 75 Ω
Configuration: Single-ended Input
Hot Switch Lock: Between 15 to 40 Frames | | SDI | Number of Outputs: Two 75 Ω BNC's
Standards: NTSC or PAL
Impedance: 75 Ω
Output Level: 800 mV
DC Offset: 0V +/- 0.1V
Rise Time: 555pS
Fall Time: 540pS
Low frequency jitter: 0.31 UI
Alignment jitter: 0.50 U | | Reference Input | Number of Inputs: 2 High Impedance Looping BNCs, >50K ohms
Configuration: Single-ended Input
Signal Type: Analog Black Burst, High Impedance loop
Frequency Lock Range: 20ppm from nominal | | Front Panel | 8 Character Display: Readout of Setting Adjustment
Escape: Green LED, Flashes with no Reference Input
Enter: Green led, Flashes with no Composite Input
Menu Select: Rotary Encoder
Menu Option: Readout of Settings Adjustment | | Electrical | Input Power: Auto Detection 90 to 264 VAC
Power Consumption: 6 W Frequency: 47 to 63 Hz
Consumption: 12 Watts
Compliance: Designed to Meet UL Approval | | Environmental | Temperature: 32 ~ 122°F (0 ~ 50°C) ambient
Humidity: 10 ~ 90% non-condensing | | Dimensions (LxW) | 10 x 4.3" (254 x 109mm) | | Weight | 7 oz (198g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
