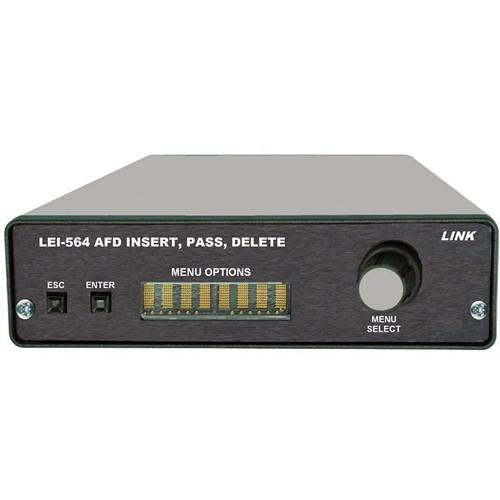

User Manual for Link Electronics LEI-564 AFD Insert Pass Delete Click to enlarge the picture
Contents of the user manual for the Link Electronics LEI-564 AFD Insert Pass
- Product category: Test Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Test Equipment
|
User manual for the Link Electronics LEI-564 AFD Insert Pass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics LEI-564 AFD Insert / Pass / Delete is a 1 RU that adds, detects and deletes AFD (Active Format Description) configurations in the HD/SD video signals. It also regenerates the video payload identifier (SMPTE 352M) that is used to describe the video formats. Suitable for use in video production and digital display systems, the device supports video signal formats such as 270 MBps SD and 1.5GBps HD. With 4 modes of operation (Detect, Insert, Delete, and Auto), the LEI-564 AFD Insert / Pass / Delete auto detects SD and HD video standards and converts them to the desired standards for transmission. In Detect mode, the device checks for current AFD configurations while in the Auto mode, AFD configurations are added it in if they are absent. The AFD inserted in the HD/SD video signals carries information about display characteristics such as aspect ratio, brightness etc. The LEI-564 AFD Insert / Pass / Delete can be controlled by an 8-character display with menu navigation by 2 buttons and a rotary encoder. - 1 RU that adds, detects and deletes AFD (Active Format Description) configurations in HD/SD video signals
- Regenerates the video payload identifier (SMPTE 352M) for describing the video format
- Supports video signal formats such as 270 MBps SD and 1.5GBps HD
- Used in video production and digital display system for ensuring high-quality images
- 4 modes of operation - Detect, Insert, Delete, and Auto
- Detect mode - checks for current AFD configurations
- Auto mode - AFD configurations are added it in if they are absent
- AFD inserted in the HD/SD video signals carries information about display characteristics such as aspect ratio, brightness, etc
- Auto detects SD and HD video standards and converts them to the desired standards for transmission
- Can be controlled by an 8-character display with menu navigation by 2 buttons and a rotary encoder
In the Box Link Electronics LEI-564 AFD Insert / Pass / Delete 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LEI-564 AFD Insert Pass Delete in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-564 Specs | SDI Input | Format: 270 Mb/s, 1.48 Gb/s, & 3 Gb/s
SMPTE Standards: 259 M, 292 M, (and 424 M future)
Connectors: BNC
Impedance: 75Ω
DC Offset: 0.5V max
Signal Level: 800mv ±10% | | SDI Output | Format: Follows Input
Connector: 2 BNCs
Impedance: 75Ω
Signal Level: 1 .0Vp-p ±10%
DC Offset: ±100mV
Jitter Improvement: ~ 5%
SD @ 270 Mb/s: 25ps pp, Typical
HD @ 1.48 Gb/s: 15ps pp, Typical | | Front Panel Controls | Enter: Momentary Switch with LED
Escape: Momentary Switch with LED
Menu Options: Eight Character LED Display
Menu Select: Optical Rotary Encoder | | Power Adapter | 100 - 240VAC 50 - 60Hz | | Power Consumption | 5W | | Operating Temperature | 32 - 122°F (0 - 50°C) | | Humidity | 0 to 90% non-condensing | | Dimensions (HxWxL) | 1 x 5.5 x 9.3" (25 x 140 x 236mm) | | Weight | 1.5 lbs (0.7kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
