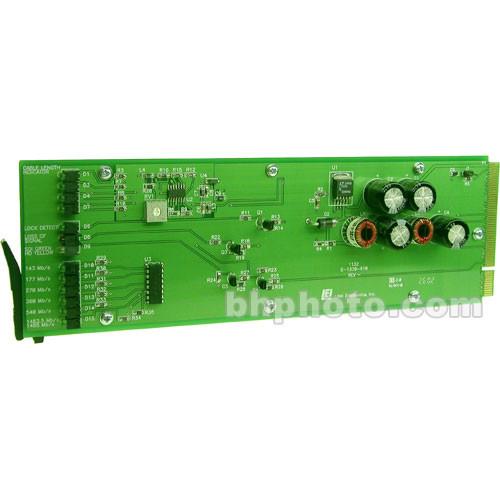

Product description The DigiFlex 1132/1033 SDI Digital Distribution Amplifier Module from Link Electronics is an SDI distribution amplifier module designed for use in the DigiFlex video management system. It can output up to (4) signals through the 1033 rear module.
This unit restores the incoming signal to its proper amplitude by reshaping it with equalization and DC restoration. This restoration also allows for an extended cable length of up to 1,000' in certain configurations. An LED on the front edge of the front module and one on the rear module indicate loss of signal. - 1x4 or 1x8 SDI Distribution
- This unit can output (4) signal when used with the 1032 rear module or (8) signals when used with the 1033 rear module.
- Signal Restoration
- This unit restores the incoming signal to its proper amplitude by reshaping it with equalization and DC restoration.
- Signal Loss Indicator Light
- An LED on the front edge of the front module and one on the rear module indicate loss of signal.
In the Box Link Electronics LINK 1132/1033 1x4 Distribution Amplifier Distribution Amplifier Ten-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LINK 1132 1033 1x4 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1132/1032 Specs | Input | (1) SDI, BNC | | Output | (4) SDI, BNC | | Video Bandwidth | 270Mbs to 1.485Gbs | | Video Signal-to-Noise Ratio | 4.2 Watts | | Differential Phase | 4.2 Watts | | Differential Gain | 4.2 Watts | | Video Control | Through computer | | Coupling | Not Specified by Manufacturer | | Power Source | 4.2 Watts | | Dimensions | 3-3/16 x 1 x 10" | | Weight | 0.45 lb | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
