User Manual for Link Electronics LVC-63 Analog to HDMI Converter Click to enlarge the picture
Contents of the user manual for the Link Electronics LVC-63 Analog to HDMI
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics LVC-63 Analog to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

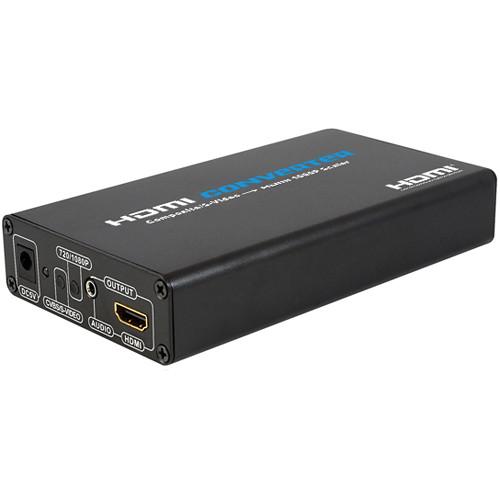

Product description The Link Electronics LVC-63 Analog to HDMI Converter converts CVBS/S-Video and audio (L/R) to HDMI. The output improves the picture and audio quality with Color Eye technology. The Color Eye technology chooses an optimal solution from thousands of color assortments that makes the output quality vivid.The color technology of the conversion process used in the LVC-63 optimizes the video signal to give a vivid image with no jitter that improves the edges of fast-moving videos using the Color Eye technology. This means that it can restore 3 primary colors, red, green, and blue with no imperfections.It supports both 4:3 and 16:9 outputs with good results. The rear panel has 2 switches on the right side. The first switch called Format selects between 720 and 1080p, while the second switch called Mode selects the various inputs. - Convert analog audio and video signals into a single HDMI output for use with HD displays
- Up-scales Composite Video or S-Video up to full HD 1080p
- HDMI output is optional at 720p 50 / 60 Hz (LED: red) or 1080p 50 / 60 Hz (LED: green)
- Composite Video, HDMI, and S-Video can have simultaneous connection, and to be selected as the input source by the switch button
- Composite Video and S-Video share the same audio input
- Supports OSD (On-Screen Display) S-Video (source) 1080p 50 / 60 Hz (output resolutions)
UPC: 705641990153 In the Box Link Electronics LVC-63 Analog to HDMI Converter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics LVC-63 Analog to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LVC-63 Specs | Input Resolutions | HDMI Input Resolution Supported:480i @ 60 Hz, 480p @ 60Hz, 576i @ 50 Hz, 576p @ 50 Hz, 720p @ 50 Hz, 10802i @ 60 Hz, 10180p @ 60 HzHDMI Gratis Card Input Resolution: 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1020 x 768 @ 60 Hz, 1280 x 720 @ 60 Hz, 1280 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1360 x 768 @ 60 Hz, 1366 x 768 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1440 x 900 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz | | CVBS | CVBS Input: Detect NTSC / PAL, automatically, 1.0 Vpp impedance 75 Ω | | S-Video Input | Detect NTSC / PAL automatically
Y: 1.0 Vpp Impedance: 75 Ω
C: 0.6 Vpp 75 Ω | | HDMI | HDMI DDC Signal: 5 Vpp (TTL)
HDMI TMDS Single: 0.5 to 1.0 Vpp
HDMI Output Signal: 720p @ 50 / 60 Hz, 1080p @ 50 / 60 Hz | | Power Consumption | 3.5 W | | Power Supply | 5 VDC / 2 A | | | | Temperature | 32 to 122°F (0 to 50° C) ambient | | Humidity | 10 to 90% non-condensing | | Power | 3.5 W, 5 VDC @ 0.45 A | | | | Dimensions (HxWxD) | 1.00 x 5.00 x 3.50" (2.54 x 12.70 x 8.89 cm) | | Weight | 4.00 oz (113.40 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 2.7" |
