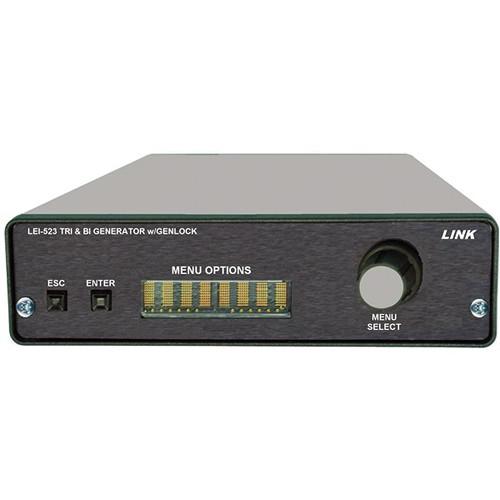

User Manual for Link Electronics Master Sync Generator Click to enlarge the picture
Contents of the user manual for the Link Electronics Master Sync Generator
- Product category: Video & Audio Signal Generators Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Video & Audio Signal Generators
|
User manual for the Link Electronics Master Sync Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics Master Sync Generator is a multi-format signal generator offering bi-level (SD black burst) or tri-level (HD sync) inputs and HD YUV or RGB Analog outputs with bi-level or tri-level sync, thus timing both SD and HD source videos in a system. Thanks to FPGA (Field-programmable Gate Array) technology, the generator provides the excellent performance for all 30 test patterns, including SMPTE, EIA, and Full Field Bars. It can operate as a stand-alone or a genlock unit with a pair of looping BNC connectors on the rear panel. Moreover, it automatically detects and locks depending on the reference input. The master sync generator automatically modifies the output format to the closest format that is genlockable to the reference, and is equipped with an infinite genlock timing range for both horizontal and vertical with an indication, making it ideal for timing the signal into the studio facility. The Master Sync Generator is equipped with 23 different HD formats and unit identification that can uniquely identify up to 100 different units. Adjustments can be easily made to the generator using the front panel control buttons and the rotary encoder knob. The front panel, 8-character LED display shows the function under adjustment, whereas the 2 push-button switches are for the "Escape" and "Enter" functions. - Bi-level (SD black burst) / tri-level (HD sync) inputs
- HD YUV or RGB analog outputs with bi-level or tri-level sync
- Both SD and HD source videos can be timed in the master sync generator
- FPGA (Field-programmable Gate Array) technology provides excellent performance for all 30 test patterns, including SMPTE, EIA, and Full Field Bars
- Operates as a stand-alone or a genlock unit with a pair of looping BNC connectors on the rear panel
- Automatically detects and locks depending on the reference input
- Infinite genlock timing range for both horizontal and vertical with indication
- 23 different HD formats available as well as NTSC or PAL black burst
- Unit identification - uniquely identifies up to 100 different units
- Front panel, 8-character LED display shows the function that is being adjusted
- Front panel control buttons and rotary encoder knob for adjustments
- 2 push-button switches are used for "Escape" and "Enter" functions
In the Box Link Electronics Master Sync Generator 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics Master Sync Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-523 Specs | Outputs | HD YUV or RGB Analog: One set of three 75 Ω BNC's
Level, Y, G, B, & R: 1Vpp, ±10% @ 100% Color Bar
Level, U & V: 0.7Vpp, ±10% @ 100% Color Bar
Level, Sync: Bi-level or Tri-level one 75 Ω BNC, 0.6Vpp±10% | | Reference Input | Reference: 2 High Impedance Looping BNCs, >50K ohms
Type: Tri-level (HD) or Bi-level (SD) sync
Level: 1Vpp +/- 3dB
Configuration: Single ended | | Power | Input Power: Auto Detection 100 to 240 VAC
Frequency: 47 to 63 Hz
Consumption: 12 Watts
Compliance: Designed to meet UL Approval | | Environment | Temperature: 32 - 122°F (0 - 50°C)
Ambient Humidity: 0 to 90% non-condensing | | Dimensions (HxWxL) | 1.5 x 9 x 5.5" (38 x 229 x 140mm) | | Weight | 1.8 lbs (0.8kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
