User Manual for Link Electronics PAF-823 Audio Follow Switcher 8x1 - Balanced , 2nd Output, RS-232, Rackmountable Click to enlarge the picture
Contents of the user manual for the Link Electronics PAF-823 Audio Follow Switcher
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics PAF-823 Audio Follow Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

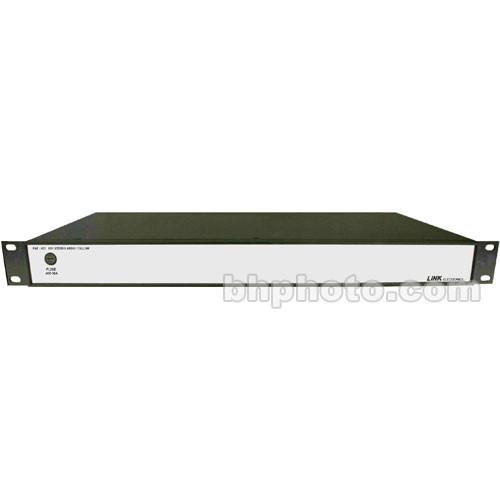

Product description The Link Electronics PAF-823 is an eight input, one output, balanced audio switcher. It offers an identical second output and remote control via RS-232. An RJ-11 telephone connector allows several audio follow units to operate in tadem. This unit operates in an audio follow situation for VSW-800 series video switchers or as a stand alone device. - RS-232
- Able to be remotely controlled from a PC using provided software via RS-232
- Audio Follow
- This unit was designed to work with VSW-800 series video switchers as an audio follow unit but, has the ability to operate in a stand alone configuration.
- Tandem
- RJ-11 connectors allow units to be cascaded and operated in tandem for multi-levels of audio switching.
- Rackmountable
- This unit fits in existing studio rack space without extraneous equipment.
In the Box Link Electronics PAF-823 Audio Follow Switcher 8x1 - Balanced (terminal blocks), 2nd Output, RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PAF-823 Audio Follow Switcher 8x1 - Balanced , 2nd Output, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PAF-823 Specs | Input | Balance Stereo Audio x8, @ 20K ohms, on terminal block connectors | | Output | Balanced Stereo Audio, @ 66 ohms, on two terminal block connectors | | Switch Type | Remote switching via RS-232
Audio Follow via VSW-800 video switchers | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 100 dB | | Audio THD | 0.004% | | Control | Remote switching via RS-232
Audio Follow via VSW-800 video switchers | | Power Source | 120 VAC 60 Hz
240 VAC 50 Hz | | Dimensions (WxDxH) | 19 x 8.7 x 1.75"
48.26 x 22 x 4.45cm | | Weight | 6.5 lbs
2.9 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
