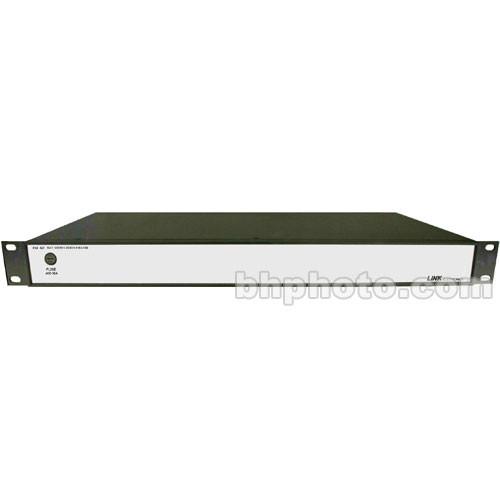

Product description The Link Electronics PAF-827 is a sixteen input, one output, balanced stereo audio switcher. It offers a differential input and remote control via RS-232. An RJ-11 telephone connector allows several audio follow units to operate in tandem. This unit operates in an audio follow situation for VSW-800 series video switchers or as a stand alone device. - RS-232
- Able to be remotely controlled from a PC using provided software via RS-232
- Audio Follow
- This unit was designed to work with VSW-800 series video switchers as an audio follow unit.
- Tandem
- RJ-11 connectors allow units to be cascaded and operated in tandem for multi-levels of audio switching.
- High Impedance Input
- The high impedance balanced input circuits reduce loading effects and noise on the incoming signals.
- Rackmountable
- This unit fits in existing studio rack space without extraneous equipment.
In the Box Link Electronics PAF-827 Stereo Audio Switcher 16x1 - Balanced (terminal blocks), RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PAF-827 Stereo Audio Switcher 16x1 - Balanced , RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PAF-827 Specs | Input | Balance Stereo Audio x16, @ 20K ohms, on terminal block connectors
RS-232, on 9-Pin connectors
Remote, on an RJ-11 connector | | Output | Balanced Stereo Audio, @ 66 ohms, on terminal block connectors | | Switch Type | Remote Controlled Only | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 100 dB | | Audio THD | 0.004% | | Control | Remote switching via RS-232
Audio Follow via VSW-800 video switchers | | Power Source | 120 VAC 60 Hz
240 VAC 50 Hz | | Dimensions (WxDxH) | 19 x 8.7 x 1.75"
48.26 x 22 x 4.45cm | | Weight | 6.5 lbs
2.9 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
