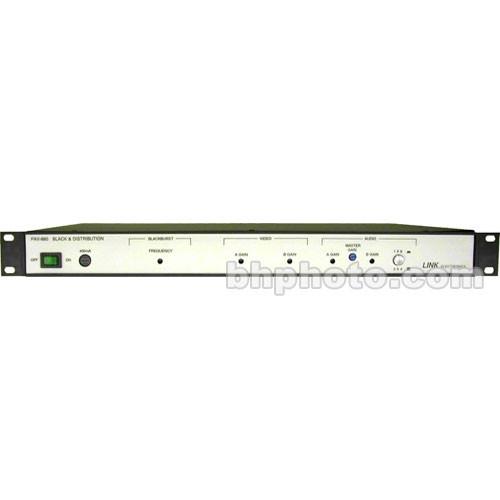

User Manual for Link Electronics PAV-880 1x8 2x4 Video Mono Audio Distribution Amplifier and Signal Generator - Composite , Mono Unbalanced , Black Burst, 1 kHz Tone, Rackmountable Click to enlarge the picture
Contents of the user manual for the Link Electronics PAV-880 1x8 2x4 Video
- Product category: Distribution Amplifiers (DA's) Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Distribution Amplifiers (DA's)
|
User manual for the Link Electronics PAV-880 1x8 2x4 Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics PAV-880 is a 1x8 or 2x4 composite video, balanced mono audio distribution amplifier that also features multiple black burst output and tone generation for reference. This unit can operate as a single or dual distribution amplifier with a flip of a switch. - Dual Configuration
- This unit operates as a dual 1x4 AV DA or one 1x8 AV DA; it features the ability to also operate as a single 1x4 DA with stereo audio as well. Operation configuration can change with a rear panel switch adjustment.
- Reference
- While being a very capable DA this device also serves as studio reference outputting multiple black burst signals and 1 kHz audio tone.
- Adjustable
- Audio/Video gain, frequency adjustment and configuration selection allows the user to set up the PAV-880 to specific parameters.
- Rack Mountable
- This unit is standard rack mount size and will fit into existing studio space.
In the Box Link Electronics PAV-880 1x8 2x4 Video/Mono Audio Distribution Amplifier and Signal Generator - Composite (BNC), Mono Unbalanced (RCA), Black Burst, 1 kHz Tone, Rackmountable 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PAV-880 1x8 2x4 Video Mono Audio Distribution Amplifier and Signal Generator - Composite , Mono Unbalanced , Black Burst, 1 kHz Tone, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PAV-880 Specs | Input | Composite video x1 or 2, 1 Vpp @ 75 ohms, On BNC connectorx
Balanced mono audio x1 or 2,@ 10K ohms, On Terminal Block connectors | | Output | Composite video x4 or 8, 1 Vpp @ 75 ohms, On BNC connectors
Balanced mono audio x4 or 8, @ 44 ohms, On Terminal Block connectors
Black Burst x6, NTSC, 40 IRE Burst, On BNC connectors | | Video Bandwidth | 20 MHz | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Differential Phase | 0.12° | | Differential Gain | 0.15% | | Video Control | Gain A and B
Configuration Selection | | Coupling | Not Specified by Manufacturer | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 80 dB | | Audio THD | 0.2% | | Audio Control | A and B Gain
Master Gain
Configuration | | Dimensions | 19 x 11.5 x 1.75"
43.26 x 29.2 x 4.45cm | | Weight | 4.5 lbs
2 kg | | Power Source | 120/240 VAC @ 50/60 Hz | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
