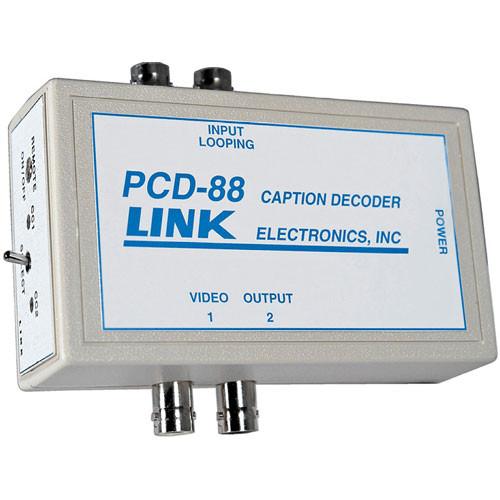

User Manual for Link Electronics PCD-88 Portable Closed Caption Decoder Click to enlarge the picture
Contents of the user manual for the Link Electronics PCD-88 Portable Closed Caption
- Product category: Closed Caption Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Closed Caption Equipment
|
User manual for the Link Electronics PCD-88 Portable Closed Caption contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics PCD-88 is a portable closed caption decoder for the NTSC system; data channels and text select are offered for user selection. The required input signal is composite video with caption data on line 21 of field one. Note: Optional power supply (such as PWT-300) purchased separately - LED Read Out
- Four LEDs indicate which channel is selected CC1, CC2, T1 or T2.
- Time Out
- An automatic caption "Time Out" function will erase displayed captions after 15 seconds if no new data is received.
- Application
- This device is useful when a monitor without a Closed Caption decoder is used in broadcast monitoring; this device can be mounted close to the monitor because of its compact size.
- Usage
- The input is high impedance looping configured as single ended, AC coupled, to work in all environments. The remaining BNC connector must be terminated with 75Ω. A regulated 12VDC power supply, such as the Link PWT-300, is included. The PWT-300 operates on AC power from 90 to 240VAC.
UPC: 705641990177 In the Box Link Electronics PCD-88 Portable Closed Caption Decoder Power Supply 10-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PCD-88 Portable Closed Caption Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PCD-88 Specs | Input | Composite Video, looping, 1 Vpp @ 50K ohms, on BNC connectors | | Output | Composite Video x2, character video 90 IRE, background video 10 IRE, @ 75 ohms, on BNC connectors | | Control | Switch Control:
CC1/CC2/T1/T2Internal Control:
Composite Video Level
Background Level
Character Intensity | | Power Source | 12VDC from an Optional AC Power Adapter | | Dimensions | 4.5 x 2.6 x 1.4" (11.4 x 6.6 x 3.5cm) | | Weight | 5.5 oz (156g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.1 x 3.8 x 3.3" |
