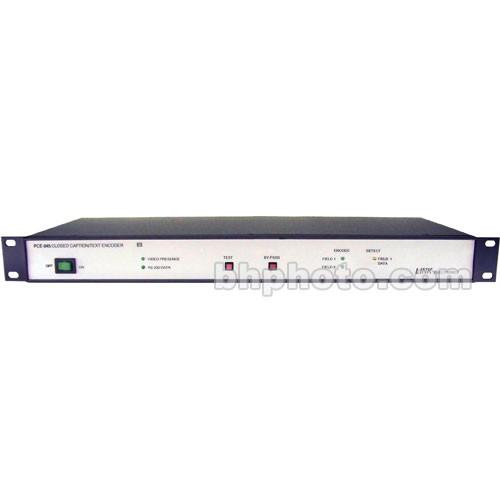

Product description The Link Electronics PCE-845D is a Closed Caption encoder for NTSC and PAL systems with decoder; data channels and text select are offered for user selection. The required input signal is composite, component or Y/C video; this unit will then insert caption data on line 21 of field one or field two. It will also read caption data and decode for display. - LED Read Out
- Four LED's indicate encoding on field 1 or field 2, video presence or field 1 detection..
- Encoding
- Encoding can be NTSC, PAL, on field 1 or field 2 of line 21; this encoding works well with the old system and with updated FCC specifications.
- Future Encoding
- This device will meet future requirements of inserting data on lines 10 through 25.
- Application
- This device is useful when a monitor without a Closed Caption decoder is used in broadcast monitoring; this device can be mounted close to the monitor because of its compact size.
- RS-232
- Remote can be operated via RS-232 and a PC; an RS-232C input/output is provided for data transmission as well.
- Test
- A test function is actuated with a front panel button; this test signal places a text message on line 21 to confirm proper operation.
- Step Up from PCE-845
- This model offers a decoder along with encoding capabilities; it allows video with caption data to be read decoded and displayed on the output monitors.
- Rackmountable
- This unit was designed to fit in a 1 rack unit space.
In the Box Link Electronics PCE-845D Closed Caption Encoder with Decoder - NTSC, PAL, Component, Y/C, Composite (BNC), CC1, CC2, T1,T2, RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PCE-845D Closed Caption Encoder with Decoder - NTSC, PAL, Component, Y C, Composite , CC1, CC2, T1,T2, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PCE-845D Specs | Input | Composite Video, Looping, 1 Vpp @ 100K ohms, Bridging, on BNC connectors
Y/C S-Video, Y: 1 Vpp C: 0.6 Vpp @ 75 ohms, on a 4-Pin connector
Component Video, Beta or MII, on BNC connectors
RS-232, remote, on a 9-Pin connector
RS-232, data, on a 9-Pin connector
By-Pass, on a two pin connector | | Output | Encoded Composite Video x2, 1 Vpp @ 75 ohms, on BNC connectors
Encoded Y/C S-Video, Y: 1 Vpp C: 0.6 Vpp @ 75 ohms, on a 4-Pin connector
Encoded Component Video, Beta or MII, on BNC connectors | | Control | Front Panel:
Test
Bypass
On/OffRear Panel:
NTSC/SVHS
Remote Bypass | | Power Source | 115-240 VAC @ 50/60 Hz | | Dimensions | 19 x 8 x 1.75"
43.26 x 20.3 x 4.45cm | | Weight | 4.75 lbs
2.15 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 22.2 x 18.3 x 10.6" |
