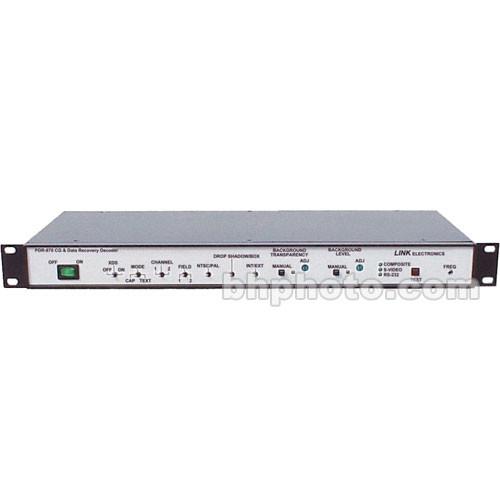

Product description The Link Electronics PDR-870 is a high performance Closed Caption Decoder for the NTSC and PAL systems. It is capable of processing and displaying all standard closed caption format transmissions--including the EIA-608 Extended Character Set--in the manner of a typical closed caption decoder. - Encoding
- Encoding can be NTSC, PAL, on field 1 or field 2 of line 21; this encoding works well with the old system and with updated FCC specifications.
- Data Channels
- Nine standard data channels are supported by the PDR-870: Captions channels 1 thru 4 (CC1-CC4), Text channels 1 thru 4 (T1-T4) and Extended Data Services (XDS).
- V-Chip
- This unit is V-Chip compatible, therefore does not let the closed caption signal interfere with the V chip information.
- Auto Detect
- This unit will auto detect the incoming television system signal and adjust to the correct parameters.
- Test
- A test function is actuated with a front panel button; this test signal places a text message on line 21 to confirm proper operation.
- Front Panel Operation
- The various decoding channels are selectable by four front-panel toggle switches. Additional front-panel toggle switches provide NTSC/PAL video standard selection, drop-shadow or box character keying, and internal/external video. The internal video function allows the PDR-870 to generate its own video as a medium for producing open captions.
- Rackmountable
- This unit was designed to fit in a 1 rack unit space.
In the Box Link Electronics PDR-870 Closed Caption Decoder and Character Generator - Composite, Y/C, NTSC PAL, RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PDR-870 Closed Caption Decoder and Character Generator - Composite, Y C, NTSC PAL, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PDR-870 Specs | Input | Composite Video, Looping, 1 Vpp @ 18K ohms, on a BNC connector
Y/C S-Video, Y: 1 Vpp C: 0.6 @ 75 ohms, on a 4-Pin connector or 2 BNCs
RS-232 Remote, on 9-Pin connector | | Output | Composite Video x2, 1 Vpp @ 75 ohms, on BNC connectors
Y/C S-Video x2, Y: 1 Vpp C: 0.6 @ 75 ohms, on a 4-Pin connector and 2 BNCs | | Control | Front Panel:Power On/Off
ByPass
Test
XDS On/Off
Mode CAP/TEXT
Channel 1/2
Field 1/2
NTSC/PAL
Manual
Background Level Adjust | | Power Source | 115-240 VAC @ 50/60 Hz | | Dimensions | 19 x 7.5 x 1.75"
43.26 x 19 x 4.45cm | | Weight | 2.5 lbs
1.13 kg | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
