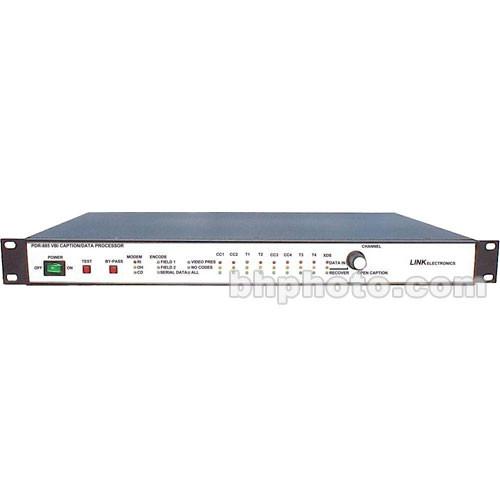

User Manual for Link Electronics PDR-885 VBI Caption and Data Processor - Encoder, Decoder, Composite, Component, Y C, RS-232, Rackmountable Click to enlarge the picture
Contents of the user manual for the Link Electronics PDR-885 VBI Caption and
- Product category: Closed Caption Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Closed Caption Equipment
|
User manual for the Link Electronics PDR-885 VBI Caption and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics PDR-885 is a Closed Caption Encoder with an integral Decoder for inserting caption and text data on Line 21 of the NTSC signal. Caption and Text data may be inserted in either field of the Vertical Blanking Interval. In addition, data on the incoming video signal may be recovered from either field of the VBI. - Encoding
- Encoding can be NTSC on field 1 or field 2 of line 21; this encoding works well with the old system and with updated FCC specifications.
- Data Channels
- Incoming data may be displayed as Open Captions using the built-in Closed Caption Decoder and captured by a computer utilizing the serial data port.
- V-Chip
- This unit is V-Chip compatible, therefore does not let the closed caption signal interfere with the V chip information.
- Test
- A test function is actuated with a front panel button; this test signal places a text message on line 21 to confirm proper operation.
- Serial Ports
- For remote captioning applications, a second serial port is available as a modem input. Both serial ports may be configured for RS-232 or RS-422 I/O, with optional plug-in PCB.
- Rackmountable
- This unit was designed to fit in a 1 rack unit space.
In the Box Link Electronics PDR-885 VBI Caption and Data Processor - Encoder, Decoder, Composite, Component, Y/C, RS-232, Rackmountable Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PDR-885 VBI Caption and Data Processor - Encoder, Decoder, Composite, Component, Y C, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PDR-885 Specs | Input | Composite Video, 1 Vpp @ 18K ohms, on a BNC connector
Y/C S-Video, Y: 1 Vpp C: 0.6 @ 75 ohms, on a 4-Pin connector
Component Video, Beta or MII, on BNC connectors
RS-232 Remote, on 9-Pin connector | | Output | Composite Video x2, 1 Vpp @ 75 ohms, on BNC connectors
Y/C S-Video, Y: 1 Vpp C: 0.6 @ 75 ohms, on a 4-Pin connector
Component Video, Beta or MII, on BNC connectors
Decoder Output x2, Char. Vid 90 IRE, Bckgd Vid 10 IRE, on BNC connectors | | Control | Front Panel:
Power On/Off
ByPass
Test
Rotary Selector for Caption or Text Data | | Power Source | 115-240 VAC @ 50/60 Hz | | Dimensions | 19 x 8 x 1.75"
43.26 x 20.3 x 4.45cm | | Weight | 4.75 lbs
2.2 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 20.0 x 11.5 x 2.0" |
