User Manual for Link Electronics PFM-210 200 Series VideoLink Mounting Frame for PVA-152 1 Video Distribution Amplifiers Click to enlarge the picture
Contents of the user manual for the Link Electronics PFM-210 200 Series VideoLink
- Product category: DA & Extender/Repeater Accessories Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics DA & Extender/Repeater Accessories
|
User manual for the Link Electronics PFM-210 200 Series VideoLink contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

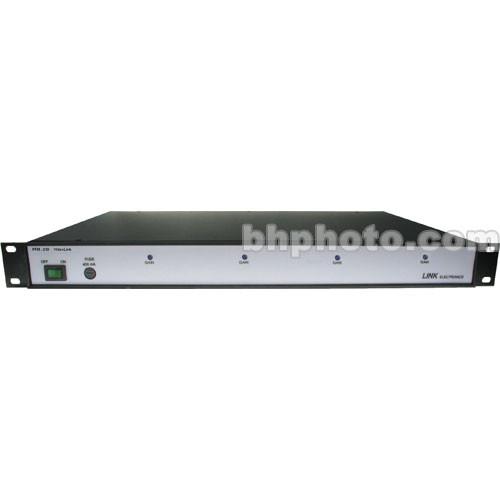

Product description The PFM-210 200 Series VideoLink Mounting Frame for PVA-152/1 Video Distribution Amplifiers from Link Electronics is a frame designed to accommodate up to (4) PVA-152/1 Video Distribution Amplifiers. Use this unit to simplify your setup and increase your efficiency by organizing and mounting multiple amplifiers in one rack adapter.
When operating in this frame, each amplifier has up to (8) video outputs. Additionally, when the frame has four amplifiers the video input can be looped for up to (32) outputs. This frame comes complete with mount, power supply, and rear panel connectors. The rear panel features BNC connectors on this model.
The power-supply PC board on this unit is designed as its foundation and will accept a power transformer. The rear-panel motherboard routes input and output signals and leaves room for future expansion. - Multiple Amplifier Configuration
- Use this unit to simplify your setup and increase your efficiency by organizing and mounting multiple amplifiers in one rack.
- Increase Output Capacity
- When operating in this frame, each amplifier has up to (8) video outputs. Additionally, when the frame has four amplifiers the video input can be looped for up to (32) outputs.
In the Box Link Electronics PFM-210 200 Series VideoLink Mounting Frame for PVA-152/1 Video Distribution Amplifiers Mounting Frame Ten-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PFM-210 200 Series VideoLink Mounting Frame for PVA-152 1 Video Distribution Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PFM-210 Specs | Electrical | Power input: 120 VAC± 10%, 50/60 Hz
Connectors: 40 BNC,PFM-210, 108 Screw Terminals
Crosstalk: >55dB | | Controls | Power Switch: ON/OFF
Gain: Adjust signal level
Fuse: 250mA | | Power | 120VAC, +8 VDC @ 300mA, -8 VDC @ 300 mA | | Dimensions (HxWxD) | 19 x 11-1/2 x 1-3/4" | | Weight | 5 lbs | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
