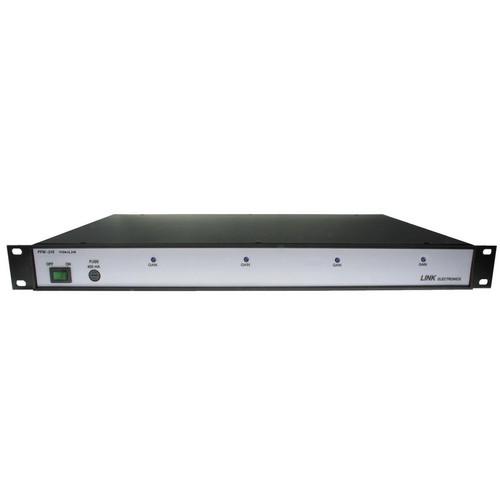

Product description The Link Electronics PFM-210SM 200 Series Mounting Frame Video DA's accommodates up to 4 PVA-152/1 video DA's. Each PVA-152/1 has 8 video outputs. The 200 series comes complete with a mounting frame, power supply, and rear panel connectors for easy hook-up. The video DA input can be looped for up to 32 outputs with the frame loaded with 4 modules. By using 2 modules for the right signal and 2 modules for the left signal, the PFM provides 16 stereo outputs.The PFM-210 200 Series Mounting Frame Video DA's uses BNC rear panel connectors. The power supply PC board is designed as the basis for the PFM-210 video frame. The PC board is a switch mode supply that accepts 90 to 250VAC. The rear panel motherboard correctly routes the input and output signals and provides for future expansion. It is ultra stable and extremely reliable for all applications. In the Box Link Electronics PFM-210SM 200 Series Mounting Frame Video DA's Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PFM-210SM 200 Series Mounting Frame Video DA's in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PFM-210SM Specs | | | Power Input | 120 VAC ± 10%, 50/60 Hz | | Connectors | 40 BNC, 108 screw terminals | | Crosstalk | >55 dB | | | | Power Switch | On/Off | | Gain | Adjust signal level | | Fuse | 250 mA | | | | Input | 90 to 250 VAC
+15 VDC at 300 mA
-15 VDC at 300 mA | | | | Dimensions (H x W x D) | Frame: 1.75 x 19.00 x 11.50" (4.44 x 48.26 x 29.21 cm) Power Supply: 1.25 x 2.50 x 10.75" (3.18 x 6.4 x 27.30 cm) | | Weight | Frame: 5.0 lb (2.3 kg)
Power Supply: 12.5 oz (354.4 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
