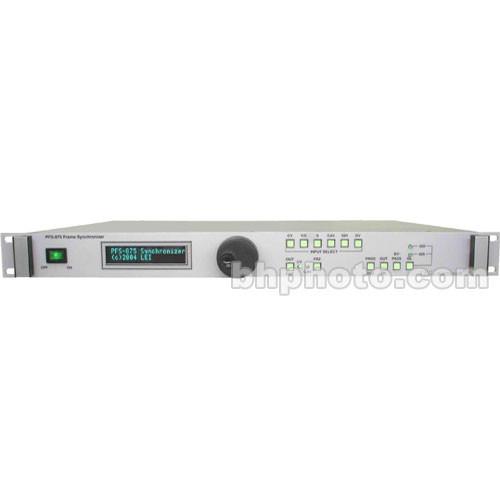

User Manual for Link Electronics PFS-875 Video Frame Sync Signal Converter Click to enlarge the picture
Contents of the user manual for the Link Electronics PFS-875 Video Frame Sync
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics PFS-875 Video Frame Sync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics PFS-875 Video Frame Sync / Signal Converter is a video frame synchronizer and signal converter. This device has multiple conversion capabilities outputting analog and SDI digital video signals with digital and analog audio processing. It offers aspect ratio functions and Genlock capabilities. - SDI
- This frame synchronizer specializes in SDI signal processing for the user's upgrade to digital.
- Genlock
- A looping genlock offers the user the ability to reference to studio timing.
- Proc-Amp
- Front panel adjustments offer full proc-amp control.
- Universal Device
- This unit offers universal conversion, aspect ratio conversion, frame synchronization, audio conversion, closed caption and other embedded support with user manual adjustments.
- Display
- A front panel Vacuum Fluorescent Display, VFD, allows convenient selection between multiple input signals.
- Rack-Mountable
- This device fits into existing studio rack spaces without extraneous equipment.
- Embedded Audio
- The PFS-875 passes four channels of embedded stereo AES audio. AES delay adjustments will allow for matching output audio to video.
UPC: 705641990191 In the Box Link Electronics PFS-875 Video Frame Sync / Signal Converter Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PFS-875 Video Frame Sync Signal Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PFS-875 Specs | Inputs | SDI / CV / YUV / Y/C / S-Video:
Analog: 7 (CV, Y/C, YUV, & S-Video)
Composite & Y level: 1Vpp, 75 Ω, BNC
U/V level: 0.525Vpp, 75 Ω, BNC
C level: 0.624Vpp, 75 Ω, BNC
S-Video: 4-Pin Mini-DIN
SDI: 0.8Vpp ±10%, EQ . 750", 75 Ω, BNC
Gen-Lock Reference: 1Vpp, looping BNCs | | Outputs | SDI / CV / YUV / Y/C:
Analog outputs: 3 (3CV, CV & Y/C, or YUV)
Composite & Y level: 1Vpp, 75 Ω, BNC
U/V: 0.707Vpp (Beta)/0.525Vpp (SMPTE), 75 Ω, BNC
C level: 0.625Vpp, 75 Ω, BNC
SDI (2 BNCs): 0.8Vpp ±10%, 75 Ω, BNC
EAV-SAV: meets SMPTE ITU-656 | | Signal Processing | ADC/DAC Encoding/Decoding: 12 bit
Component YUV Pipeline: 10 bit
Video Range: 50 to 150 %, 100 % @ unity
Chroma Range: 50 to 150 %, 100 % @ unity
Set-Up Range: -19.9 to +19.9 IRE/NTSC, -142 to +142 mV/PAL
Burst Amplitude: 20 to 50 IRE/NTSC, 143 to 357 mV/PAL
Sync Tip Adjust: 30 to 60 IRE/NTSC, 214 to 428 mV/PAL
Horizontal Timing: 0 to 1715 (NTSC)/1727(PAL) pixels (Infinite)
Vertical Timing: 0 to 524 (NTSC)/ 624 (PAL) lines (Infinite)
Sub-carrier Timing: 0 to 359° (Infinite)
Hue Phase: 0 to 359° (Infinite) | | Frequency Response and S/N | Frequency Response: +/- 2.5 dB at 4.22 MHz
Tilt: <1% ref. 30Hz square wave
Hum: >70 dB, 1.0Vp-p
Overshoot & Ringing: <1%
S/N Ratio: >65 dB
Differential Gain: <1%
Differential Phase: <2°
K-Factor: <0.5%, 2T Pulse
Line Rate Tilt: <0.5%, 2T Pulse
Field Rate Tilt: <0.1% | | AES/EBU | Input: 2 AES/EBU Stereo channels
Resolution: 20/24-bit, 48 KHz
Input type: 1Vpp ±10%, 75 Ω, BNC
Channel Status: Professional S/PDIF
Output: 2 AES/EBU Stereo channels
Resolution: 20/24-bit, 48 KHz
Output type: 2, 75 Ω, BNCs | | SDI Embedded Input | Input: 2 AES/EBU Stereo channels
Resolution: 20/24-bit, 48 KHz
Connection: BNC (SDI video input) | | SDI Embedded Output | Input: 2 AES/EBU Stereo channels
Resolution: 24 bit
Sampling Rate: BNC (SDI video output)
Delay Resolution: 640 ms in steps of 80 ms
THD: 0.0002 %
THD + N: 0.0006 %
Signal to noise ratio: >100 dB
Channel Separation: 134 dB
Channel Crosstalk: 123 dB | | Front Panel Controls | AC Power: On/Off By-Pass, Gen-Lock, Freeze: Push/Push, maintained Input Select, Output Format, PROC ADJ: Selection LEDs: Output Format, Standard Detection | | VFD Display | 20 x 2 characters | | Power | Input Power: Auto Detection 90 to 264 V AC
Frequency: 47 to 63 Hz
Power: 30 Watts | | Operating Temperature | 32 to 122°F ambient (0 to 50°C) | | Dimensions | 1.75 x 19 x 11" (4.4 x 48.2 x 28 cm) | | Weight | 4.75 lbs (2.1 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
