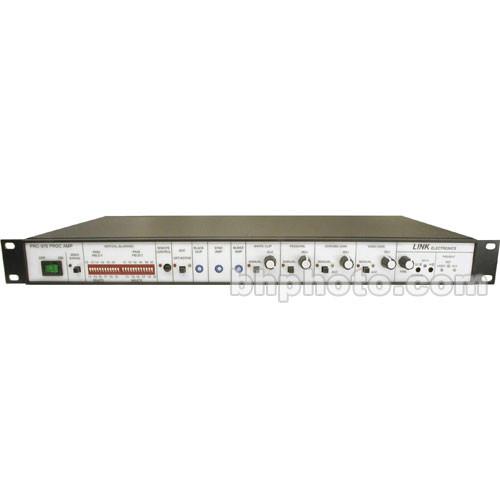

Product description The Link Electronics PRC-970 is a video processing amplifier; it offers the ability to produce a black burst output along with the processing functions. This unit will sync to an external source providing all the timing adjustments. - AGC
- A new approach to AGC is incorporated into the video and chroma level circuitry called DSR; the DSR constantly monitors the signal parameters and will keep each parameter within NTSC specified limits.
- Design
- This unit was designed to be used in studio and TV transmitter applications.
- Video Detect/Axillary Select
- This feature works when the primary signal is lost; the PRC-970 automatically selects the axillary input when primary signals are undetected. If no axillary inputs are found a Black Burst signal is generated and offered.
- RS-232
- When using the optional PSR-970 remote control can be utilized from up to 250 feet away.
- Rackmountable
- This device was designed to fit into a standard studio rack space.
UPC: 705641990573 In the Box Link Electronics PRC-970 Video Processing Amplifier - Composite, Black Burst Output, Genlock, Rackmountable, RS-232 Power Cord 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PRC-970 Video Processing Amplifier - Composite, Black Burst Output, Genlock, Rackmountable, RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PRC-970 Specs | Input | Composite Video (Primary), 1 Vpp @ 75 ohms, Differential/Single Ended/Switchable on a BNC connector
Composite Video (Auxilary), 1 Vpp @ 75 ohms, Differential, on a BNC connector
External Reference, Looping, 1 Vpp @ 15K ohms, on a BNC connector
RS-232, on a multipin connector | | Output | Composite Video x2, (program and monitor), 1 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 10 MHz | | Differential Gain | 0.2% | | Differential Phase | 0.1° | | Video Signal-to-Noise Ratio | 60 dB | | Control | Front Panel:
Video Level
Black Level
Chroma Level
White Clip
Horizontal Phase
Burst Phase
Black Clip
Sync Amplitude
Burst AmplitudeRear Panel:
Differential/Non-Differential Input | | Power Source | 110 to 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 19 x 8.85 x 1.75"
48.3 x 22.5 x 4.45cm | | Weight | 5.25 lbs
2.38 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 7.0" |
