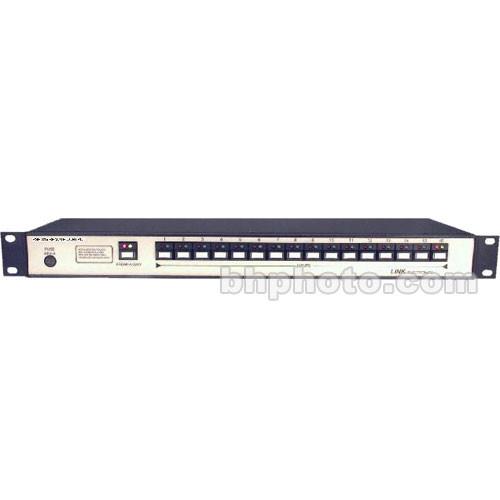

Product description The PSR-816 Remote Control Panel for AVS-816 Video Switcher from Link Electronics is a panel that allows you to remotely control and monitor the AVS-816 Video Switcher. It is a 16x1 controller that features an RS-232 serial port to allow interface with a computer. Communications with the switcher is handled via an RS-485 compatible serial link and an RJ-11 modular jack.
The combination of this panel with the switcher allows for communication distances of up to 1,000'. Push-button LED indicator lights on the panel display active, selected audio and video sources. This unit may control the switcher as an audio-only or video-only unit. This unit is mounted in a 1U chassis and features a reduced depth to accommodate placement on a table or desktop.
For more information about the function of this unit, please visit the following link which provides full specifications for the AVS-816 Video Switcher: LIAVS816 - Remote Control
- This panel allows you to remotely control and monitor the AVS-816 Video Switcher.
- 1,000' Communication Distance
- The combination of this panel with the switcher allows for communication distances of up to 1,000'.
- LED Indicator Lights
- Push-button LED indicator lights on the panel display active, selected audio and video sources.
- Desktop or Rackmount
- This unit is mounted in a 1U chassis and features a reduced depth to accommodate placement on a table or desktop.
In the Box Link Electronics PSR-816 Remote Control Panel for AVS-816 Video Switcher Remote Control Panel Ten-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PSR-816 Remote Control Panel for AVS-816 Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PSR-816 Specs | Inputs | RS-232: 9 Pin D Connector, Female, Computer Control
RS-485: Two, In and Out, RJ-11, Remote Control | | Controls | Push Buttons: 16 input selections, momentary | | Operating Conditions | Temperature: 0° to 50°C ambient
Humidity:0% to 90% non-condensing | | Power | Input: 120/240 VAC, 50/60Hz
Power:3 Watts | | Dimensions | 1-3/4 x 19 x 4-1/2" | | Weight | 2.5 lbs | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 20.4 x 4.5 x 2.5" |
