User Manual for Link Electronics PTC-892 Caption Encoder Decoder SD-SDI Analog Click to enlarge the picture
Contents of the user manual for the Link Electronics PTC-892 Caption Encoder Decoder
- Product category: Closed Caption Equipment Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Closed Caption Equipment
|
User manual for the Link Electronics PTC-892 Caption Encoder Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

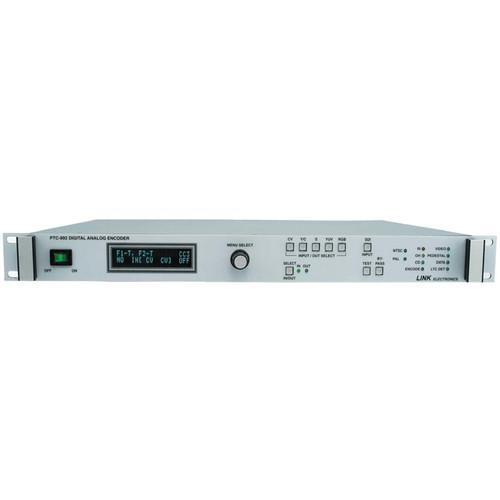

Product description The PTC-892 Caption Encoder/Decoder SD-SDI/Analog from Link Electronics offers captioning encoder, decoder, and data recovery functionality and is capable of inserting, decoding, and recovering data of captions and text for NTSC/PAL for the following signals: composite, Y/C, S-video, RGB, YUV, and SDI. Captioning and text may be inserted (encoded) in either field of the Vertical Blanking Interval (VBI). That inserted data may be displayed as open captions through the decoder output(s). Caption data on the incoming or outgoing video may be recovered from either field of the VBI. This data can be sent to another encoder or a language translation machine or program, then re-encoded or captured by a program for manipulation. Encoding, decoding, and data recovery may be done simultaneously and controlled by the front panel menus or by serial communications. Inputs and outputs are provided for both SD-SDI and SD analog, including composite, Y/C, S-video, YUV, and RGB. The power loss feature bypasses the composite analog and SDI when AC power to the unit fails. In response to the FCC mandated requirements, captions shall not interfere with emergency crawls. The unit incorporates a weather-lift feature that moves the caption up to 4 lines whenever a contact-closure is detected on its GPI input. The number of lines can be controlled by the front panel or by software commands. The serial communication port(s) allow for remote captioning. The dual ports allow multiple encoders to be controlled simultaneously, with a back-up communication port, or with data recovery out of its ports. Port 1 is either a "B" type USB port or RS-232 port. Port 2 is either a RS-232 port or an optional modem. Both ports can be set to have different baud rates independently through the front panel menus. Front panel LEDs show unit status. Front-panel push buttons allow for control of the unit. This unit is compliant with V-chip technology and TSID ready. This technology is incorporated in the firmware of the device. It handles automatic repetition of the V-chip data and can interweave it with existing line 21 closed captioning data. It has a Longitudinal Time Code (LTC) input for precise caption timing with the video. A Front-panel Vacuum Fluorescent Display (VFD) shows various functions and menus. - V-Chip compatible & TSID ready
- LTC input & "B" Type USB port
- Detailed front panel display with menus
- Data Recovery of both caption & text
- Weather lift up to 4 lines
- SD-SDI/analog encoded outputs
- User-selectable data recovery modes
- Firmware version viewed from front panel
- User, power-up, and factory-default settings
- SD analog decoded outputs, including component
- Optional modem with RI, OH, and CD indication
- User-selectable encode modes, including newswire
- SD-SDI to SD analog conversion
- Auto detection of NTSC/PAL
- Encodes both caption and text
UPC: 705641990320 In the Box Link Electronics PTC-892 Caption Encoder/Decoder SD-SDI/Analog Ten-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PTC-892 Caption Encoder Decoder SD-SDI Analog in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PTC-892 Specs | Inputs/Outputs | VIDEO INPUTS:
SD-SDI:
Connector: one, BNC
Standard: SMPTE 259M-C 270Mb/s
Impedance: 75 Ohm, terminated
Signal Level: 800mV +/-10%
Return Loss: >18db to 270MHz
SD ANALOG:
CV, Y and G (with sync): one, BNC
C, U and B: one, BNC
V and R: one, BNC
S-Video: one, mini-din
Impedance: 75 Ohm, terminated
CV, Y and G (with sync): 1Vpp +/-3db
R, B, U and V (100% Sat): 0.7Vpp +/-3db
C (100% Sat): 0.8Vpp +/-3db
Return Loss: 40db
Maximum DC on Input: 3.2VDC MISCELLANEOUS INPUTS:
Longitudinal Time Code: +4db analog signal
Weather Lift GPI: activated when shorted
AC Power: 85 to 264VAC 50/60Hz REAR PANEL CONNECTORS:
Video: thirteen, BNC
S-Video: two, mini-din
LTC: XLR plug
Weather Lift GPI: 3.5 mono audio plug
RS-232: two, 9 pin D connectors
Modem (optional): RJ11
USB: "B" type plug
Power: IEC-320 male FRONT PANEL CONTROLS:
AC power: on/off
Menu knob: push/rotary
Input Selection: six, push/push momentary
Output Selection: push/push momentary
Test: push/push momentary
Bypass: push/push momentary VIDEO OUTPUTS:
ENCODER OUTPUTS:
SD-SDI:
Connector: one, BNC
Standard: SMPTE 259M-C 270Mb/s
Impedance: 75 Ohm, terminated
Signal Level: 800mV +/-10%
Propagation Delay: 1200ns +/-5%
SD ANALOG:
CV, Y and G (with sync): two, BNC
C, U and B: one, BNC
V and R: one, BNC
S-video: one, mini-din
All Analog Outputs: unity +/-5%
Impedance: 75 Ohm
Tilt: <1% ref. 30Hz square wave
Hum: >70db, 1Vpp
Overshoot and Ringing: <1%
Propagation Delay: 180ns +/-5%
Signal to noise ratio: >50db
Differential Gain: <1%
Differential Phase: <1E
DC Offset: < +/-0.2V DC
Frequency Response: -3db to 26MHz DECODER OUTPUTS:
SD ANALOG:
CV, Y and G (with sync): two, BNC
C, U and B: one, BNC
V and R: one, BNC
All Analog Outputs: unity +/-5%
Impedance: 75 Ohm
Character Level (CV, Y, R, G & B): 90 IRE
Background Level (CV, Y, R, G & B): 10 IRE
Background Insert (C, U and V): 0VDC | | Power | 24W | | Dimensions (HxWxD) | 1.75 x 19 x 10.75" (44.45 x 482.6 x 273.05mm) | | Weight | 5 lbs (2.27kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 6.0" |
