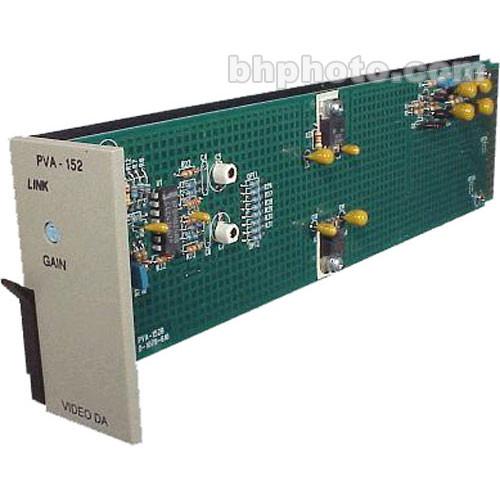

Product description The Link Electronics PVA-152/1 is a 1x8, composite video distribution amplifier; it comes in a rack frame for space saving and features gain control for user convenience. - Rack Frame Card
- This DA operates in a rack frame able to accept 9 or 10 more modules of analog or digital capabilities. This allows the user multiple capabilities in a small studio rack space.
- Gain Control
- A front edge gain control can be utilized to adjust outputs to the proper parameters.
- Differential Input
- A standard feature providing high common mode rejection.
- PFM-210 Frame
- When this card is mounted in the PFM-210 frame eight outputs are offered to the user.
In the Box Link Electronics PVA-152/1 1x8 Video Distribution Amplifier - Composite, Rack Frame Configuration, Level Control, Selectable Coupling Rack Card PFM-210 Rack Frame 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PVA-152 1 1x8 Video Distribution Amplifier - Composite, Rack Frame Configuration, Level Control, Selectable Coupling in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PVA-152/1 Specs | Input | Composite Video, 1 Vpp @ 75 ohms
On one BNC connector | | Output | Composite Video x8, 1 Vpp @ 75 ohms
On eight BNC connectors | | Video Bandwidth | 40 MHz | | Video Signal-to-Noise Ratio | 60 dB | | Differential Phase | 0.1° | | Differential Gain | 0.2% | | Video Control | Front Edge Level Control | | Coupling | AC or DC Selectable | | Dimensions (WxDxH) | 1.5 x 11.875 x 2.875"
3.8 x 30.2 x 7.3cm | | Weight | 7.5 oz
213 grams | | Power Source | +8 VDC or -15 VDC Derived from Mounting frame power supply |
