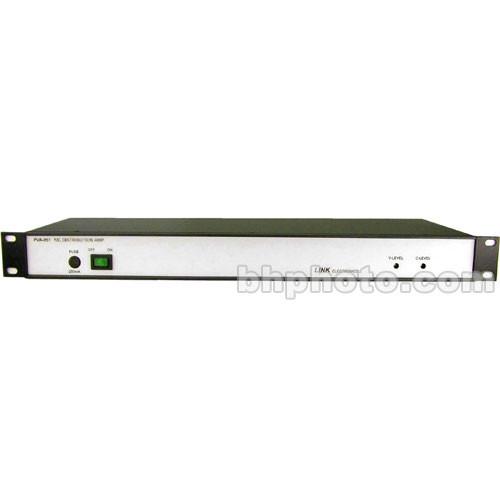

Product description The Link Electronics PVA-851 is a 1x16 Y/C (S-Video) Distribution Amplifier; it accepts a S-video signal on an 4-Pin connector and outputs sixteen identical S-video signals. - 16 Signal Distribution
- Sixteen separate and equal composite video signals can be distributed throughout a facility or home displaying the exact same video signal.
- Gain Control
- Gain control for each output can be accessed via the front panel.
- Application
- This DA was designed for duplication in a Y/C environment.
- Rugged Construction
- Enclosed in a metal case this device is durable with adequate shielding.
In the Box Link Electronics PVA-851 1x16 S-Video Distribution Amplifier - 4-Pin, Looping, Gain Control, Rackmountable AC Power Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics PVA-851 1x16 S-Video Distribution Amplifier - 4-Pin, Looping, Gain Control, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics PVA-851 Specs | Input | Y/C (S-Video), Looping, @ 20 or 75 ohms, on a 4-Pin connector | | Output | Y/C (S-Video) x 16, @ 75 ohms, on 4-Pin connectors | | Video Bandwidth | 30 MHz | | Video Signal-to-Noise Ratio | 68 dB | | Differential Phase | 0.1° | | Differential Gain | 0.1% | | Video Control | Individual Gain Controls | | Coupling | AC | | Dimensions (WxDxH) | 19 x 8 x 1.75"
48.26 x 20.3 x 4.45cm | | Weight | 4.75 lbs
2.15 grams | | Power Source | 120 to 240 VAC @ 50/60 Hz |
